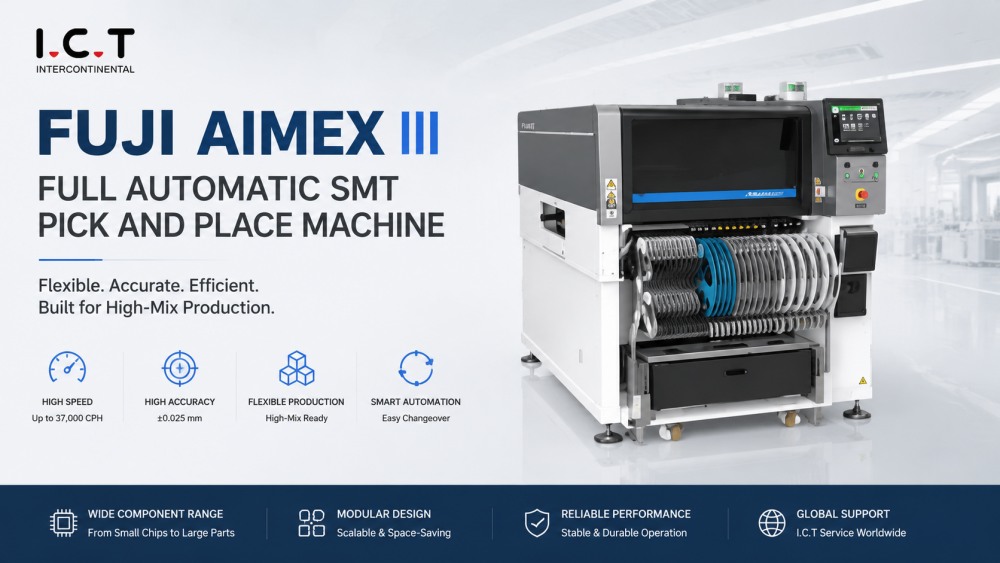

This is an all-in-on machine with scalability and the ultimate level of versatility necessary for increasing productivity for high-mix production.
It features functions for performing operation smoothly in a short time for the work that comes with introducing new production and changing the product models to produce.
The machine flexibly supports various production for users in a variety of sectors including EMS, automotive industry, and more.
FUJI Pick and Place Machine
3 key factors in choosing the best machine for your high-mix production
Versatility – Supports fast chip part placement and production of high-mix parts from many large parts and parts with odd shapes.
High quality – Several types of checks prevent the occurrence of errors
Simple – The time and effort required is reduced by advantages such as the reduction of changeovers. The operation is simple, and the start-up of production runs smoothly
+ Space-saving -> Compact design with reduced length
+ High performance -> Supports the production of large printed circuit boards and simultaneous production of two products
| Basic Specifications | |
| PCB size(LXW) | 48 x 48 mm to 774 x 610 mm (double conveyor)* 48 x 48 mm to 774 x 710 mm (single conveyor) *Double conveyors can handle PCBs up to 330 (W) mm. PCBs larger than 330 (W) mm must be produced by changing the double conveyor to single lane production mode. |
| Feeder capacity | Up to 130 (8 mm tape) |
| Placing accuracy (Fiducial mark based referencing) | H24G: +/-0.025 mm (Standard mode) / +/-0.038 mm (Productivity priority mode, under development) (3sigma) cpk≥1.00 H08M: +/-0.040 mm (3σ) cpk≥1.00 OF: +/-0.050 mm (3σ) cpk≥1.00 H02F: +/-0.025 mm (3σ) cpk≥1.00 H01: +/-0.030 mm (3σ) cpk≥1.00 |
| Machine dimensions | L: 1280mm, W: 2656mm, H: 1556mm |
| Placing heads | |||||
| H24G | H08M | H02F | H01 | OF | |
| Nozzle quantity | 24 | 8 | 2 | 1 | 1 |
| Throughput(cph) | 37,000 cph (Productivity priority mode, under development) 35,000 cph (Standard mode) | 13000 | 7300 | 4200 | 3000 |
| Part size (mm) | 03015 mm to 5 x 5 Height:Up to 2.0 mm | 0603 (0201")to45 x 45 Height:Up to 13.0 mm | 1608 (0603")to 74 x 74 (32 x 180) Height:Up to 25.4 mm | 1608 (0603")to 74 x 74 (32 x 180) Height:Up to 38.1 mm | |
| Part presence check | ○ | ○ (H08MQ) | ○ | x | |
Parts supply Tape | ○ | ○ | ○ | ○ | |
| Stick | x | ○ | ○ | ○ | |
| Tray | x | ○ | ○ | ○ | |
| DynaHead(DX) | ||||
| Nozzle quantity | 12 | 4 | 1 | |
| Throughput(cph) | 27,000 Parts presence function ON: 26,000 | 12000 | 5800 | |
| Part size (mm) | 0402 (01005") to 12.5 mm diagonally and Y is 7.5 mm or less Height: Up to 3.0 mm | 1608 (0603")to 15 x 15 Height:Up to 6.5 mm | 1608 (0603")to 74 x 74 (32 x 100) Height:Up to 25.4 mm | |
| Placing accuracy (Fiducial mark based referencing) | +/-0.038 (+/-0.050) mm (3σ) cpk≥1.00 | +/-0.040 mm (3σ) cpk≥1.00 | +/-0.030 mm (3σ) cpk≥1.00 | |
| Part presence check | o | x | o | |
| Parts supply | Tape | o | o | o |
| Stick | x | o | o | |
| Tray | x | o | o | |
* Contact I.C.T Team for specific operating conditions and detailed specifications.
