SMT Production Line Solution Provider

SMT Production Lines

Here you can get all-round SMT line machine for SMT production lines.

With the guidance of professional SMT engineers, we ensure that you will get the full SMT line solution to meets your production needs.

Keywords:

Let us explore the secret of SMT production lines

We have served many factories, and we will customize their SMT solutions according to customers' different products, capacity, number of employees, and financial status.

High-Speed SMT production line can be divided into two types, according to the degree of automation can be divided into Fully Automatic Production Line and semi-auto production line.

The main equipment are stencil printer, SMT pick and place machine, reflow oven, and SMT handing machine in Economical SMT production line.



According to whether your universal production line needs more sophisticated testing equipment, there are AOI, SPI, AXI to option.

What is the SMT production line?

SMT production line refers to a production line that uses surface mount technology (SMT) to assemble electronic products. SMT is a technology that compresses traditional electronic components into smaller surface mount components (SMC) and then directly mounts and solders them on the surface of printed circuit boards (PCBs). Also call SMT PCB assembly line.

The main features of SMT production lines are as follows:

1. High-density assembly:
Due to the small size of surface mount components, higher-density assembly can be achieved on PCBs.
2. High reliability:
SMT technology reduces the pin connection in traditional plug-in processes, thereby reducing product failure rates.
3. Low cost:
SMT production lines with a high degree of automation can achieve large-scale production and reduce production costs.
4. Miniaturization:
 Surface mount components are small in size, which helps miniaturize electronic products.
5. Automation:
SMT PCB assembly line usually use automated equipment, such as SMT stencil printers, placement machines, reflow ovens, etc., to improve production efficiency.


Where does SMT production lines be used？

SMT assembly line is a modern electronic assembly technology that is widely used in the production of various electronic products.
I.C.T 's Globalization and Localization after-sales service.

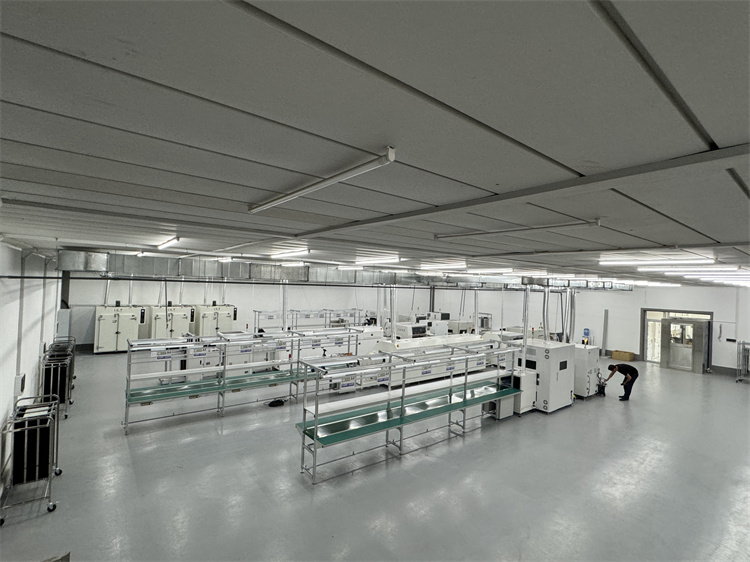

  • One-stop Smart Factory Solution for LED Lighting Manufacturing in Tajikistan.jpg
  • I.C.T Overseas Support in Uruguay .jpg
  • I.C.T Delivers a Conformal Coating Line with Return Function in Mexico.jpg
  • I.C.T-New-KAZAKHSTAN.jpg
  • I.C.TEgypt-SMT production line- PCB Loader-stencil printer- hanwha pick and place machine-reflow oven.jpg
  • I.C.T-New-EUROPE_597_597.jpg
  • I.C.T-New-KAZAKHSTAN_597_597.jpg
  • I.C.T New MALAYSIA SEMICON_596_596.jpg

Advantages of using the SMT production lines

  • SMT is beneficial to automatic production, improving yield and production efficiency

    The standardization, serialization and consistency of welding conditions of chip components make SMT highly automatic. The component failure caused by welding process will be greatly reduced and the reliability will be improved.

  • Low Materials Cost

    Due to the improvement of production equipment efficiency and the reduction of packaging material consumption, the packaging cost of most SMT components has been lower than that of THT components with the same type and function. Consequently, the sales price of SMT components is lower than that of THT components.

  • Simplify the Production Process & Reduce the Production Cost

    When mounting on the PCBs, the leads of components need not be bent, shaped or cut short, so that the whole process is shortened and the production efficiency is improved. The processing cost of the same functional circuit is lower than that of through-hole interpolation, which can generally reduce the total production cost by 30%~50%.

  • Realize Miniaturization

    The geometric size and volume occupied by SMT electronic components are much smaller than that of through-hole interpolation components, which can be generally reduced by 60%~70%, and some components can even be reduced by 90% in size and volume. At the same time, the weight of components can be reduced by 60%~90%.

  • High Signal Transmission Speed

    SMT assembled components are not only compact in structure, but also high in safety density. The assembly density can reach 5.5~20 solder joints per square centimeter when the PCB is pasted on both sides. SMT assembled PCBs can realize high speed signal transmission due to short circuit and small delay. At the same time, SMT assembled PCBs are more resistant to vibration and impact. This is of great significance to realize ultra-high speed operation of electronic equipment.

  • Good High Frequency Effects

    Because the components have no lead or short lead, the distributed parameters of the circuit are naturally reduced and the RF interference is reduced.

How do SMT production lines work？

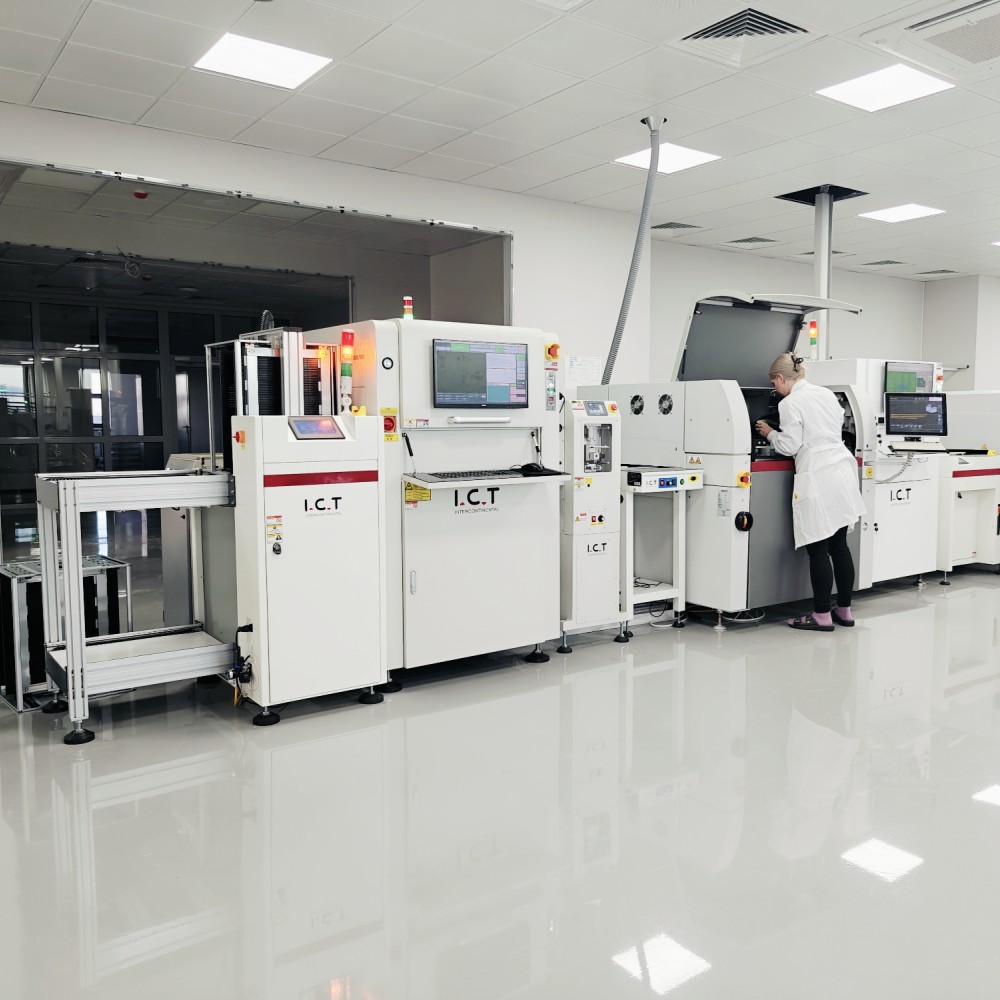

One fully automatic SMT line machine includes PCB loader, SMT Stencil Printer, Conveyor, Pick and Place Machine, Reflow Oven, AOI, NG/OK Unloader.

Take our Russian security camera manufacturer as an example:

They put the PCB board in the Loader, and then the PCB will be transferred to the stencil printing machine for solder paste printing, and then enter the pick and place machine to place components of different sizes on the PCB, and then enter the reflow oven for high-temperature soldering. Finally The produced PCBA enters the unloader.

Contact Us

How should I choose SMT production lines correctly？

The main components of the SMT Assembly line include:

  •  Printing machine: used to print solder paste or adhesive to the specified position of the PCB.
  • Mounting machine: accurately mounts surface mount components on the PCB.
  • Reflow oven: melts the solder paste by heating to achieve welding of components and PCB.
  • Inspection equipment: used to detect the quality of the assembled PCB, such as automatic optical inspection (AOI) and X-ray inspection.
  • Rework equipment: used to repair defects that occur during the production process.

The types of SMT assembly lines are mainly divided into fully automatic production lines and semi-automatic production lines.  Fully automatic production lines refer to the entire production line equipment is fully automatic equipment, while semi-automatic production lines refer to the main production equipment is not fully connected, and some operations need to be completed manually.


SMT production lines resource

Get more details, Please download the PDF “SMT Solution information” or contact us.

Name Size Thumbnail Copy Link Download
How about I.C.T ? 5.80MB download Copy Link Download
I.C.T SMT Line Solution 1.36MB download Copy Link Download
I.C.T Lyra-series Reflow Oven 1.12MB download Copy Link Download
I.C.T SMT Fully Automatic Printer 1.39MB download Copy Link Download
I.C.T SMT&DIP PCB Handling Machine 2.31MB download Copy Link Download

Related SMT Production Lines Equipment

I.C.T-4034 | Fully Automatic SMT Stencil Printer
I.C.T-4034 | Fully Automatic SMT Stencil Printer

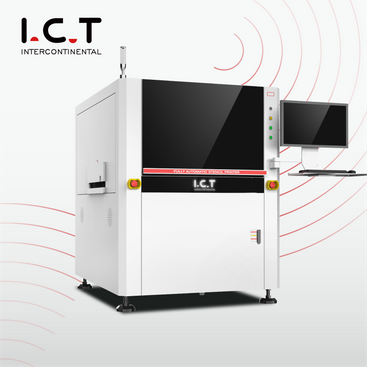

I.C.T Automatic Stencil Printer machines are the new benchmark for simple and efficient SMT printing. Its 7-second printing cycle, fast line change settings and high repeatability bring the best results in all directions. Different applications are matched to meet various needs. * PCB Size: 50*50 ~ 400*340mm * Stencil Frame Size: 470*370 ~ 737*737mm * Cleaning: Dry, Wet, Vacuum, Cleaning tube core: 410mm*Ø20mm; Cleaning paper: 380mm*10m * Standard 2D Inspection * Cycle Time: < 7.0 second
0
0
I.C.T-Lyra622N | Lead-free SMD Dual Rails Reflow Soldering Oven Machine
I.C.T-Lyra622N | Lead-free SMD Dual Rails Reflow Soldering Oven Machine

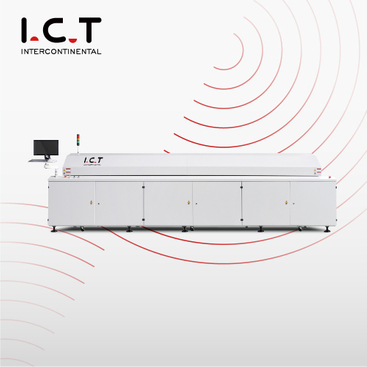

I.C.T-Lyra622N | Lead-free SMD Dual Rails Reflow Soldering Oven Machine I.C.T Lyra Series Reflow Oven is made with Nitrogen Standard. Customer can add nitrogen at any time in future I.C.T brings 26 years of experience in the SMT industry. On-site installation and training Available. 24/7 Customer Service. Highly Trained Experts. Accurate and economical. Vision guided DIY kit. Easy To Assemble. Open Source Software
0
0
RS-1R | JUKI Smt High Speed Pick And Place Machine
RS-1R | JUKI Smt High Speed Pick And Place Machine

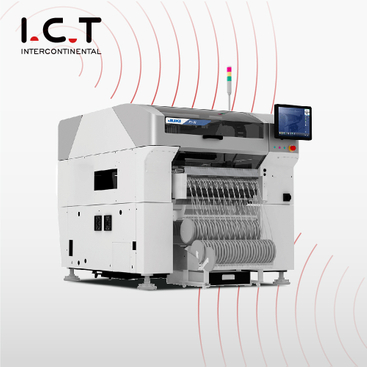

JUKI RS-1R Smt High Speed Pick And Place Machine. Even faster assembly of smallest chips (0201 metric) up to large components of 50 x 150 mm or 74 mm edge length for square components.
0
0
I.C.T-Acrab350 | High Stability DIP PCB Nitrogen Wave Soldering Machine
I.C.T-Acrab350 | High Stability DIP PCB Nitrogen Wave Soldering Machine
High Stability DIP PCB Nitrogen Wave Soldering Machine & THT PCB lead-free nitrogen wave soldering machine & automatic DIP wave soldering equipment Buy it with your trusted partner! I.C.T brings 26 years of experience in the SMT industry. Highlights: On-site installation and training Available, 24/7 Customer Service. Highly Trained Experts.Accurate and economical. Vision guided DIY kit. Easy To Assemble. Open Source Software.
0
0
I.C.T-SS540 | On-line Selective Wave Soldering Machine
I.C.T-SS540 | On-line Selective Wave Soldering Machine

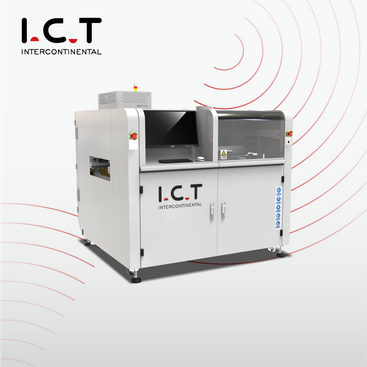

Automatic Selective Wave Soldering Machine for PCB . Welcome Inquriy! Buy it with your trusted partner! I.C.T brings 26 years of experience in the SMT industry. Highlights: On-site installation and training Available, 24/7 Customer Service. Highly Trained Experts.Accurate and economical. Vision guided DIY kit. Easy To Assemble. Open Source Software.
0
0
I.C.T- AI-5146 | Smt Production Pcb Visual Test Line Online Aoi Inspection Machine
I.C.T- AI-5146 | Smt Production Pcb Visual Test Line Online Aoi Inspection Machine

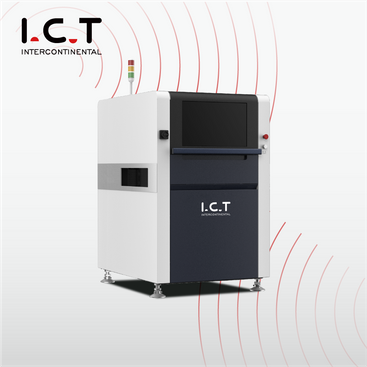

SMT AOI inspection machine supporting PCB assembly production. *12 million pixel intelligent digital industrial * Camera resolution 10um FoV40*30mm * Bilateraltelecentric lensdetection * Thetest deviation accuracyis lessthan 0.25mm * One-click automatic identification of minima list programming
0
0
I.C.T-9200 | Online Automated PCB SMT X Ray Inspection Equipment Machine
I.C.T-9200 | Online Automated PCB SMT X Ray Inspection Equipment Machine

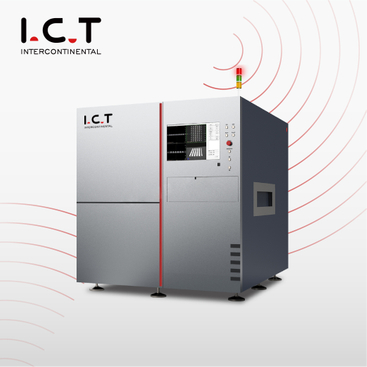

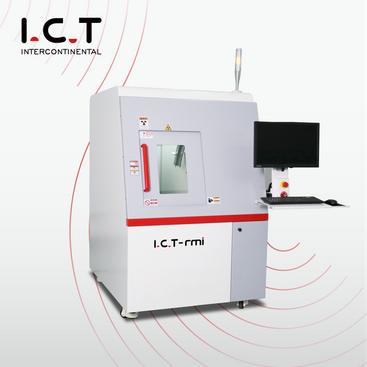

The I.C.T-9200 is designed to provide high-resolution X-ray imaging for the electronics industry. This versatile system is effective for many applications in the PCB manufacturing process. This includes semiconductors such as BGA, CSP, LGA, POP, SIP, QFN, flip chips, COB, and LED. The I.C.T-9200 is a powerful support tool for process development, process monitoring, and refinement of rework operations.
0
0
I.C.T SMT PCB Magazine Loader and Unlader
I.C.T SMT PCB Magazine Loader and Unlader

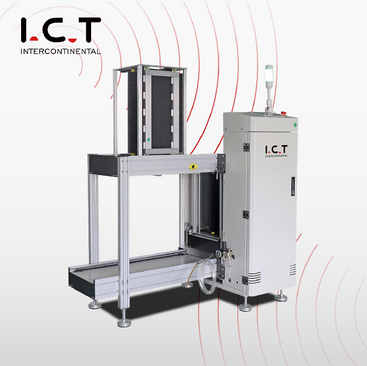

Dual-rails SMT Unloader &PCB Loader Machine Buy it with your trusted partner! I.C.T brings 26 years of experience in the SMT industry. Highlights: On-site installation and training Available, 24/7 Customer Service. Highly Trained Experts.Accurate and economical. Vision guided DIY kit. Easy To Assemble. Open Source Software.
