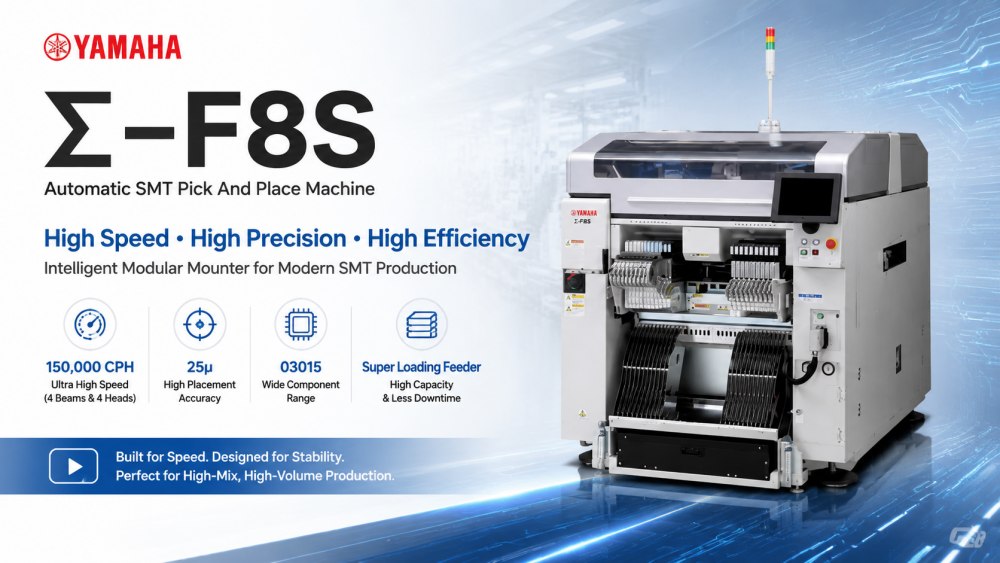

Yamaha Pick and Place Machine
Advance chip mounter
Fast & flexible pick and place machine
Multi-functional SMT placement
Fast flexible pick & place machine
1. The "1-head solution" rotary head provides. Speed, versatility and high operating ratio.
2. Fastest speed in its class! Produces 150,000 CPH with 4-beam & 4-head
3. Direct drive head gives high-speed & high-accuracy
4. The Super Loading Feeder totally innovates components supply tasks!
| Yamaha Σ-F8S SMT Pick and Place Machine | |
| Applicable PCB | Single lane : L330 x W250 to L50 x W50mm (Option : L381 x W510 to L50 x W50mm) Dual lane : L330 x W250 to L50 x W50mm |
| Head/Applicable components | High-speed head : 0201mm CHIP to 4.3 x 3.4mm, Height 2.0mm or less High-speed multi-purpose head : 03015mm CHIP to 33mm square, Height 12.7mm or less |
| Mounting capability | High-speed head x 4 specs : 150,000CPH (Dual lane) 136,000CPH (Single lane) |
| Mounting accuracy | High-speed head : 0201mm/03015mm : ±25μm (3σ) (140,000CPH) 0402mm/0603mm : ±36μm (3σ) (150,000CPH) |
| Number of component types | Max.80 types (conversion for 8mm tape feeder) |
| Power supply | 3-Phase AC200V ±10% 50/60Hz |
| Air supply source | 0.45 to 0.69MPa (4.6 to 7kgf/cm2) |
| External dimension | L 1,280 x W 2,240 x H 1,450mm (excluding projections) |
| Weight | Approx. 1,940kg |
* Specifications and appearance are subject to change without prior notice.
* Contact I.C.T for more details.
