SC-1000D
I.C.T
Availability: | |
---|---|
Quantity: | |
High quality SMT conveyor, PCB link conveyor, automatic inspection conveyor, dual-lane SMT link/inspection conveyor, cooling conveyor, telescopic conveyor, used for SMT SMD Production Line

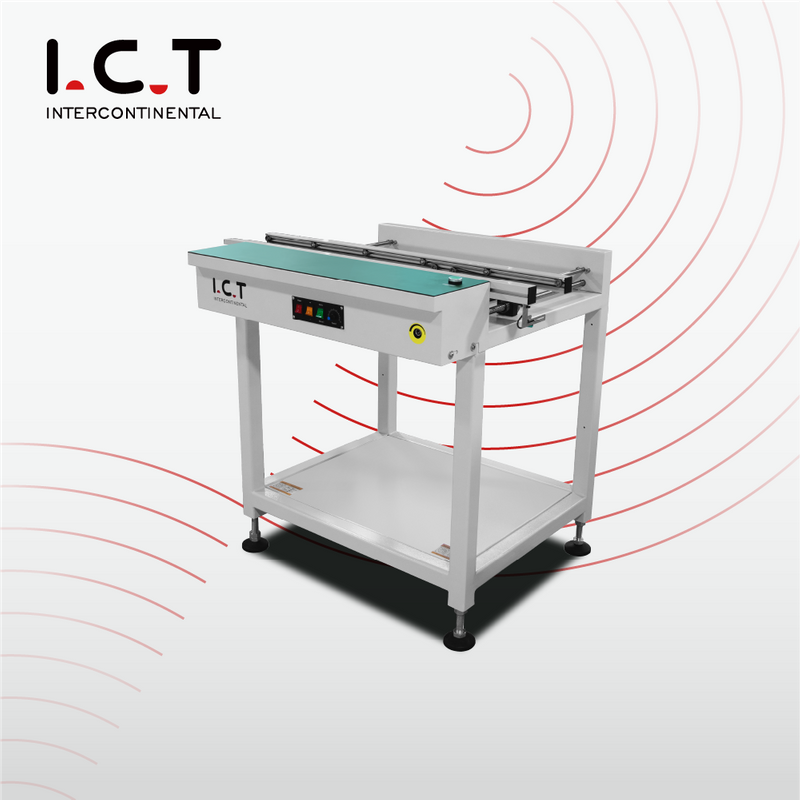

SMT Conveyor - PCB Chain Conveyor For SMT Line
Modular design, optional assembly as per client's requipment.
Rugged steel design, improves equipment stability.
Smooth stainless steel screw to adjust the width of the rail.
Variable speed control.
Body Material | Welding of metal materials | China | |
Sensor | Omron | Japan | |
Rail | Aluminum (mold making) | China | |
Belt | 4mm antistatic belt | China | |
Guide Screw | High precision ball screw | Taiwan | |
Model | SC-500D | SC-600D | SC-1000D |
Rail Length(mm) | 500 | 600 | 1000 |
Dimension(mm) | 500*990*950 | 600*990*950 | 1000*990*950 |
Max.PCB Width Dual-lane | 50 to 250 mm*2 | ||
Max.PCB Width Single -lane | 510mm | ||
Speed | Adjustable | ||
Communication | SMEMA for both in & out | ||
Power Supply | 1 PH AC 220V 50/60Hz (Option:110V to 380V) | ||
Weight | 80 kg | 90 kg | 105 kg |
FAQ
High quality SMT conveyor, PCB link conveyor, automatic inspection conveyor, dual-lane SMT link/inspection conveyor, cooling conveyor, telescopic conveyor, used for SMT SMD Production Line
SMT Conveyor - PCB Chain Conveyor For SMT Line
Modular design, optional assembly as per client's requipment.
Rugged steel design, improves equipment stability.
Smooth stainless steel screw to adjust the width of the rail.
Variable speed control.
Body Material | Welding of metal materials | China | |
Sensor | Omron | Japan | |
Rail | Aluminum (mold making) | China | |
Belt | 4mm antistatic belt | China | |
Guide Screw | High precision ball screw | Taiwan | |
Model | SC-500D | SC-600D | SC-1000D |
Rail Length(mm) | 500 | 600 | 1000 |
Dimension(mm) | 500*990*950 | 600*990*950 | 1000*990*950 |
Max.PCB Width Dual-lane | 50 to 250 mm*2 | ||
Max.PCB Width Single -lane | 510mm | ||
Speed | Adjustable | ||
Communication | SMEMA for both in & out | ||
Power Supply | 1 PH AC 220V 50/60Hz (Option:110V to 380V) | ||
Weight | 80 kg | 90 kg | 105 kg |
FAQ
1. We have more than 20 years of SMT technical service experience and global service network with providing super high-quality after-sales service support locally.
2. We can provide professional advice from pre-sale to after-sale
3. We can help customers provide full service from machine use, installation and commissioning to product completion.
4. We have global spare parts warehouses, which can provide spare parts service support fastly.
5. We can offer more professional training for all customers.
1. We have more than 20 years of SMT technical service experience and global service network with providing super high-quality after-sales service support locally.
2. We can provide professional advice from pre-sale to after-sale
3. We can help customers provide full service from machine use, installation and commissioning to product completion.
4. We have global spare parts warehouses, which can provide spare parts service support fastly.
5. We can offer more professional training for all customers.
