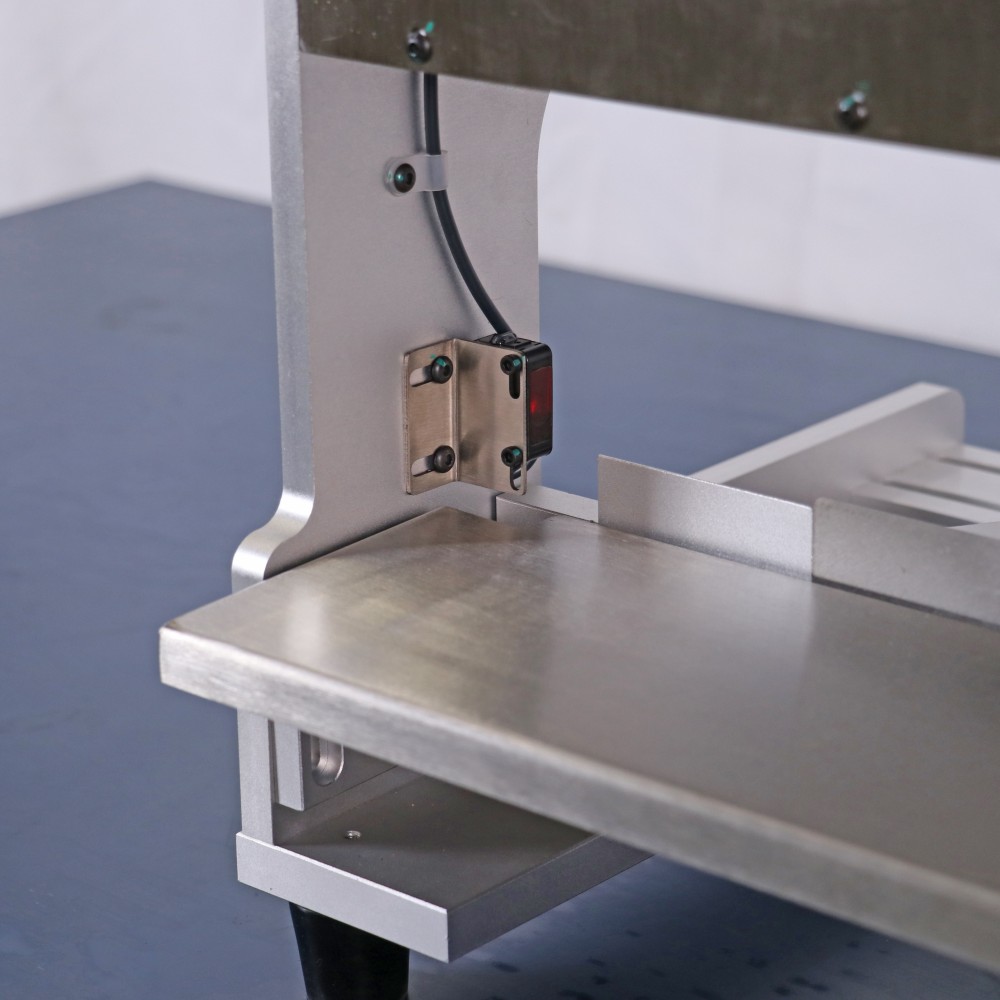

I.C.T-100A | Desktop Model PCBA Router

Name: I.C.T-100A | Desktop Model PCBA Router
Brand: I.C.T
Rating: 5.0 (70 reviews)

Desktop PCBA Router
Buy it with your trusted partner! I.C.T brings 26 years of experience in the SMT industry.
Highlights: On-site installation and training Available, 24/7 Customer Service. Highly Trained Experts.Accurate and economical. Vision guided DIY kit. Easy To Assemble. Open Source Software.

Model:
I.C.T-100A
Brand:
I.C.T

Availability:

Quantity:



Inquire Add to Basket

I.C.T-100A | Desktop Model PCBA Router

Overview

Desktop Model PCBA Router

High quality desktop PCBA router, PCBA router machine, desktop PCB router, PCB V-cut machie, PCB separator, LED depaneling, for PCBA cutting.

The desktop type PCBA router I.C.T-100A uses the high-speed rotating spindle to cut automatically. It provides a high-performance, high safety and high stability industrial equipment platform (high-precision integrated motion control card, stepping motor, precision slide rail) with simple operation, fast cutting speed and high accuracy, with the high-intensity dust collection system, keep PCBA and working surface clean.

Features

1. The cutting stress is smaller, so as to prevent chips such as ceramic capacitors from being damaged in the cutting process.
2. It can cut straight line, arc and other shapes on PCBA substrate, so the constraint on substrate design is greatly reduced.
3. Using high speed spindle, cutting stress is greatly reduced, precision is high, inertia is small, and response is fast.
4. Ion air gun will remove static electricity on PCB surface and prevent dust from adsorbing on PCB.
5. High cutting precision, smooth cutting surface, to meet the needs of customers for high-quality production process.
6. The separated vacuum dust collector adopts high efficiency motor with high suction and low noise.
7. Humanized operation system design, simple operation, flexible.

Specification

Model	I.C.T-100A
Pcb Size(Special size optional)	280*300mm
PCB thickness	0.3~4.0mm
Weight(with vacuum cleaner)	85 kg
Dimension	600500500mm
Dust Collector
Dust Collection Method	Vacuum cleaning
Air volume of vacuum cleaner	12~20cm3/min
Vacuum cleaner Dimension	860470730mm
Voltage of the Dust Collector	380V,50/60HZ, 1.2kw
