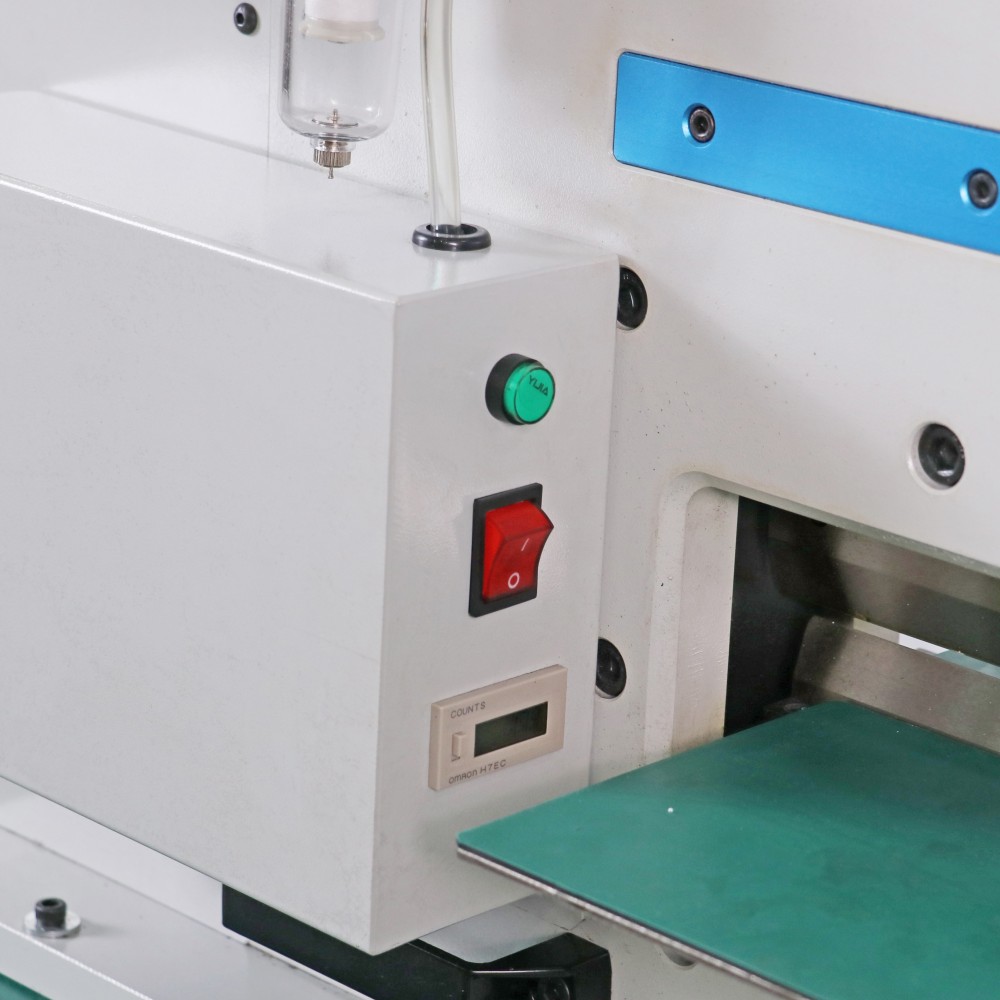

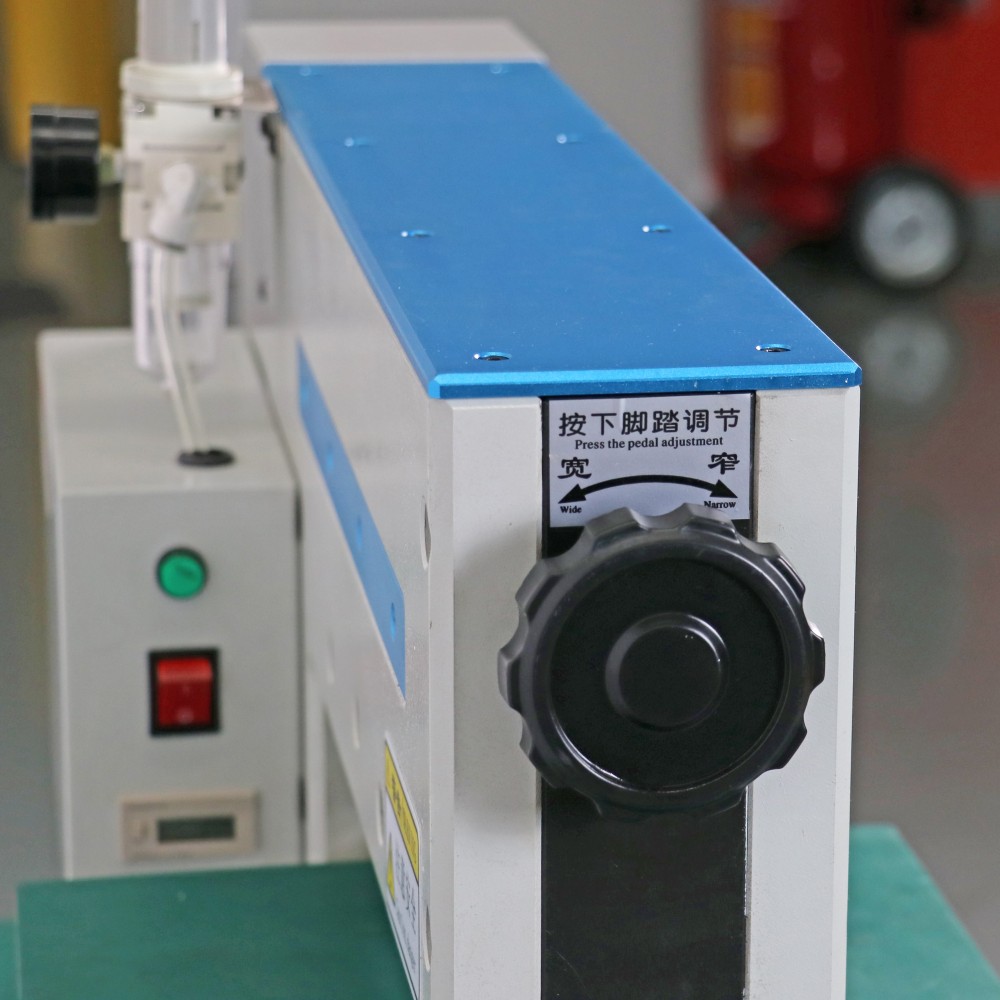

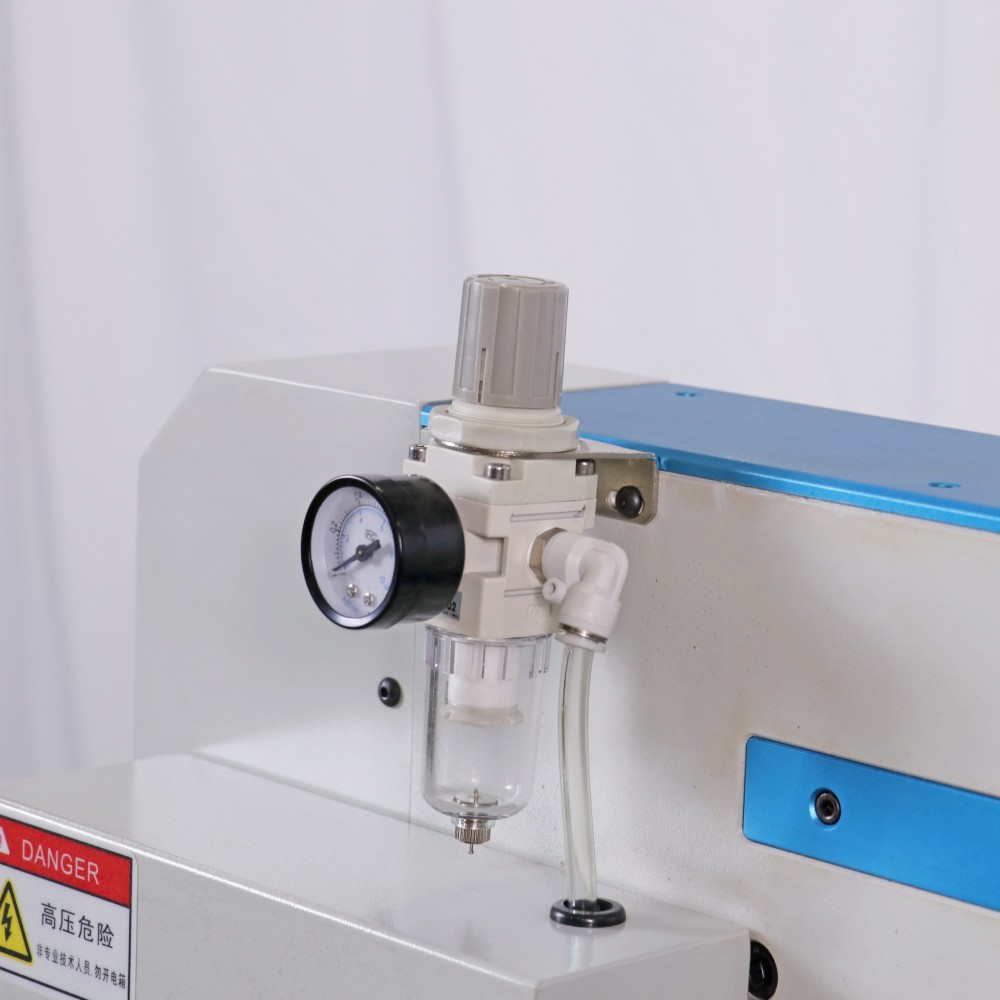

I.C.T-GV330 | Guillotine Type PCB V-cut Machine

Share to:

I.C.T-GV330 | Guillotine Type PCB V-cut Machine

Name: I.C.T-GV330 | Guillotine Type PCB V-cut Machine
Brand: I.C.T
Rating: 5.0 (75 reviews)

PCB V-cut Machine
Buy it with your trusted partner! I.C.T brings 26 years of experience in the SMT industry.
Highlights: On-site installation and training Available, 24/7 Customer Service. Highly Trained Experts.Accurate and economical. Vision guided DIY kit. Easy To Assemble. Open Source Software.

Model:
I.C.T-GV330
Brand:
I.C.T

Availability:

Quantity:



Inquire Add to Basket

I.C.T-GV330 | Guillotine Type PCB V-cut Machine

Overview

Guillotine Type PCB V-cut Machine

High quality PCB V-cut machine, PCB separator, PCB depaneling, for PCBA cutting.

1. For internal strength generates during separation,Minimize it to value under 180uE,to avoid solder crack or component damage.

2. Able to separate edge of V-slot,minimum distance to component is 0.3mm,and max height of component is 60mm.

3. Free sanding on Blade when it is worn.

4. Cutting speed is one cut per second,controlled by pneumatic foot-plate switch.

Automatic PCBA Placement Machine

1. Automatic feeding: auto feed the products to be placed in the plate after receiving the signal from the front machine.
2. Automatic code scanning: CCD detects the product size and has the code scanning function at the same time.
3. Automatic pan: CCD guides the suction nozzle to automatically suck OK products to pan.
4. Automatically distinguish NG code: NG products are automatically put into the NG plate, and the NG code and fork plate are put into the defective box.
5. Automatic stacking tray: automatically supply empty trays and stacking OK finished trays full trays.

6. AGV automatically feeds in empty trays and takes away full trays.

7. Adopt multi-axis bus control.

8. Production capacity: production capacity is about 1800-2000pcs/H

Process:
