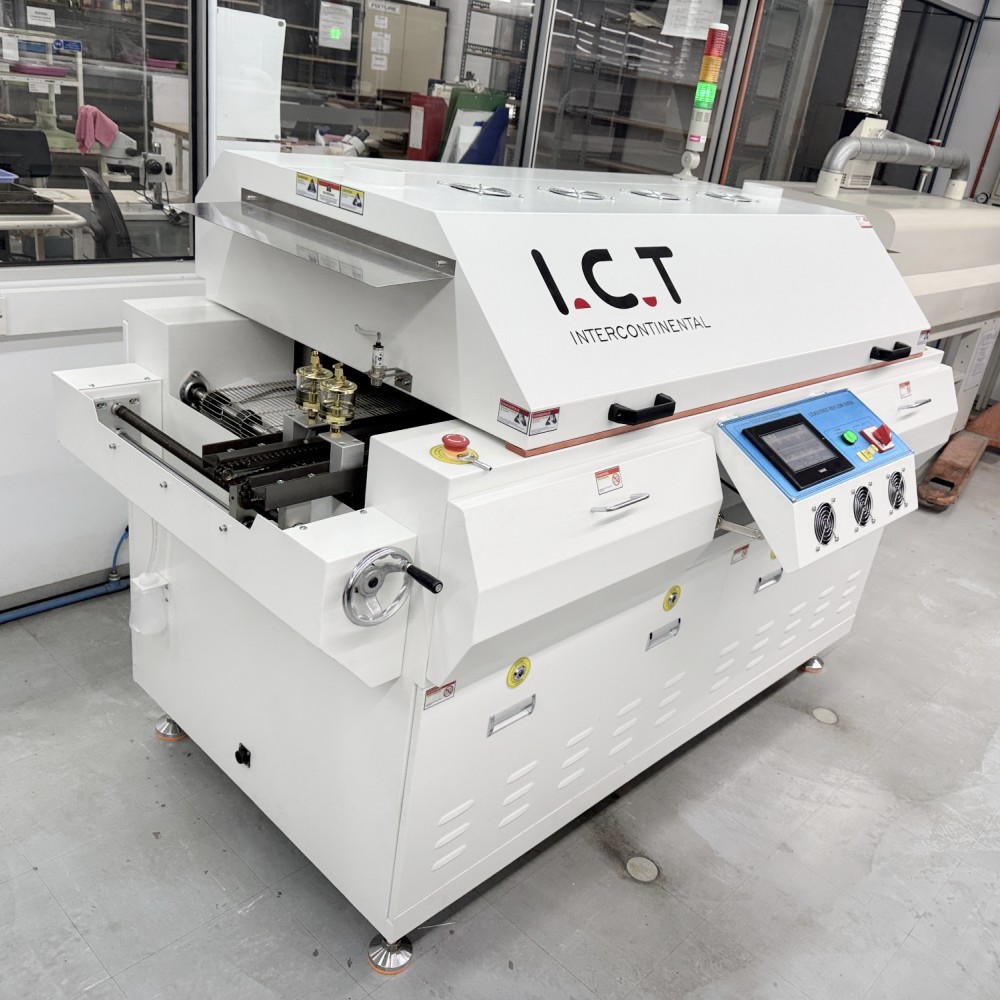

High Quality SMT PCB Reflow Soldering Oven Machine
Introduction
1. Control System: Touch screenPLC control system,accurate temperature control and more stable,ensures temperature stability rate to be
more than 99.99%.
2. First-class heating module,the effective utilization and thermal compensation efficiency, temperature control accuracy± 1℃.
3. Products comply with CE, CCC, other standards and specifications.
4. User-friendly design: fault detection (such as heaters abnormal alarm, etc.), regular maintenance reminders, the economy functions and tool-free maintenance, reducing equipment failure rates.
5. Heating module: Transverse reflow design makes temperature from each zone is not influenced by neibour to ensure accurate temperature curve, while ensuring a high production capacity and heat exchange capacity to achieve high adaptability (to meet the soldering of automotive,communications,computers and mobile phones consumer electronics.)
6. Hot air motor with independently inverter controlled, set operating frequencies depending on different technology to meet a variety of lead-free processes.
7. Main parts:Imported main parts ensure equipment runs smoothly and lower the maintenance cost.
8. Closed-loop transmission speed control systems,transportation accuracy ± 2mm/min,ensuring stable transmission speed.
9. Central support is optional.
Design concept
Transportation system
Chamber system
Hot-air system
Heating system
Operating system
| Model | T4 | T6 | T8 |
Dimension (L*W*H)mm
| 2000x890x1250
| 2500x890x1250
| 3100x890x1250
|
Weight
| Approx.550KG
| Approx.850KG
| Approx.950KG
|
Number Of Heating Zones
| Up4/Bottom4
| Up6/Bottom6
| Up8/Bottom8
|
Length Of Heating Zones
| 980mm
| 1550mm | 2100mm |
Power For Warm Up
| 20kw | 26kw | 30kw |
Power Consumption
| 5kw | 7kw | 9kw |
Transmission Agent
| Mesh+Rail
|
Max.Width Of PCB
| 300mm |
Conveyor Height
| 900+/-20mm
|
FAQ
Q: What we can do for you?
A: Total SMT Machines and Solution, professional Technical Support and Service.
Q:Are you a trade company or a manufacturer?
A: OEM & ODM service are available.
Q: What is your delivery date?
A: The delivery date is about 35 days after receipt of payment.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
Q: What your main customers?
A: Huawei,Foxconn,Vtech,Sumida,Kemet,Vishay,Bosch,Canon.
Q: Why choose us?
A: Leading SMT Supplier in China; Trade assurance to USD 560,000+; Professional after-sales service team.
