I.C.T-T550丨PCBA Selective Conformal Coating Machines

Share to:

I.C.T-T550丨PCBA Selective Conformal Coating Machines

Name: I.C.T-T550丨PCBA Selective Conformal Coating Machines
Brand: I.C.T
Rating: 5.0 (16 reviews)

I.C.T selective coating machine is the new benchmark for simple and efficient PCBA coating.
Inline Automated Selective Conformal Coating Machines
I.C.T manufactures and supplies top tier high speed selective conformal coating machines for automating the conformal coating operations of PCBA’s.

Model:
I.C.T-T550 / T650
Brand:
I.C.T

Availability:

Quantity:



Inquire Add to Basket

I.C.T | PCBA Selective Conformal Coating Machines

Overview

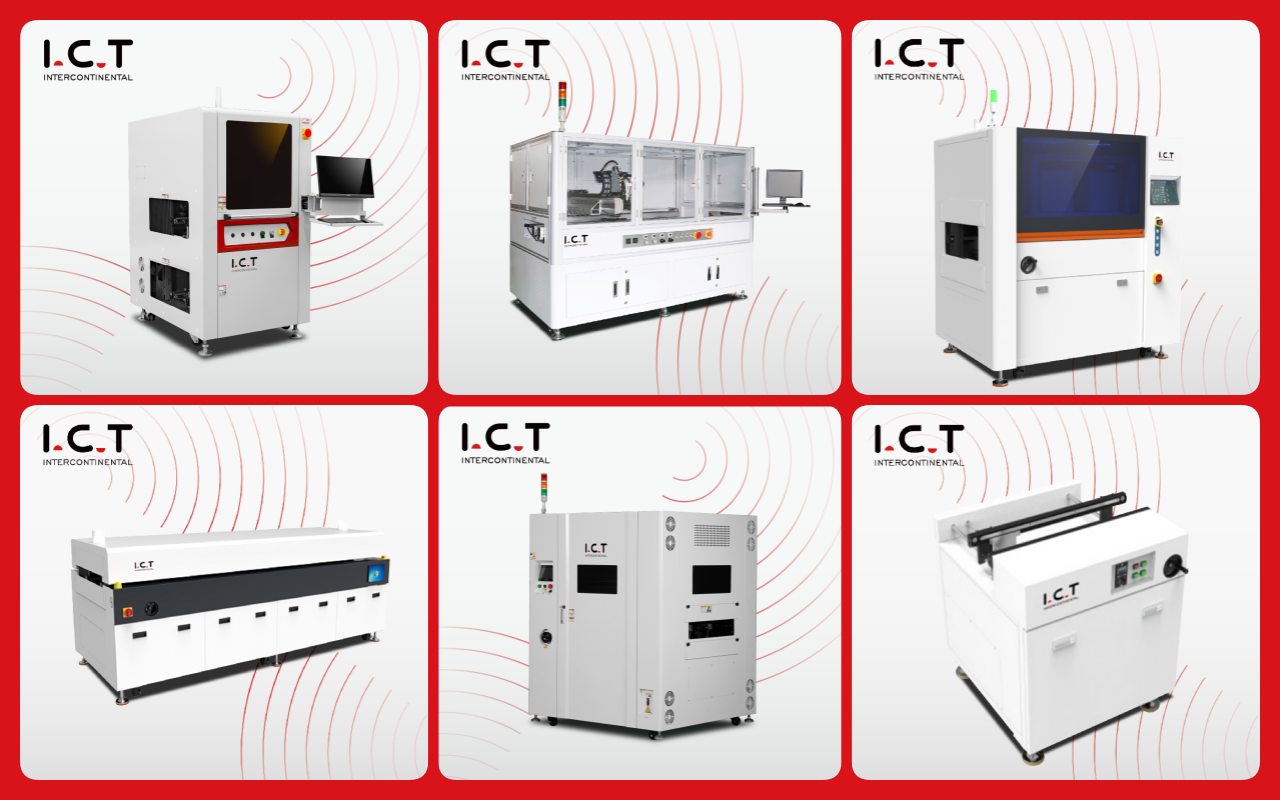

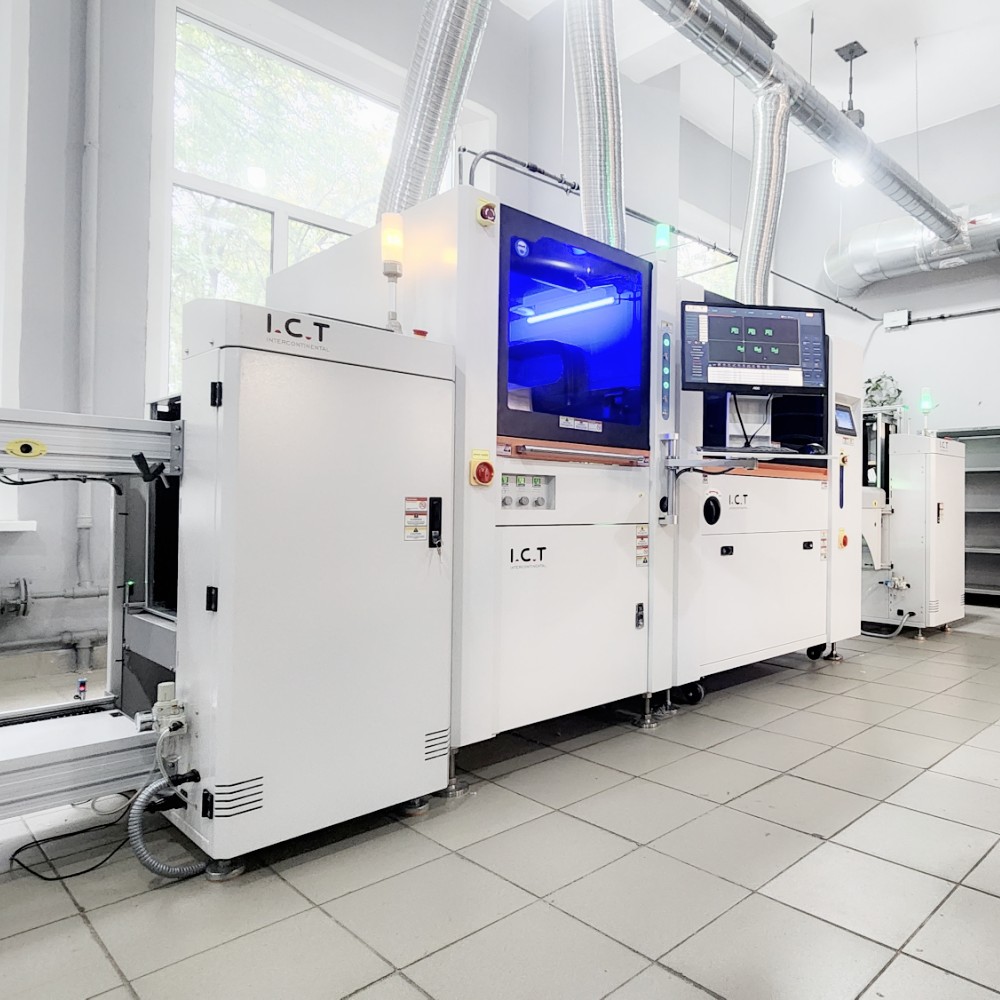

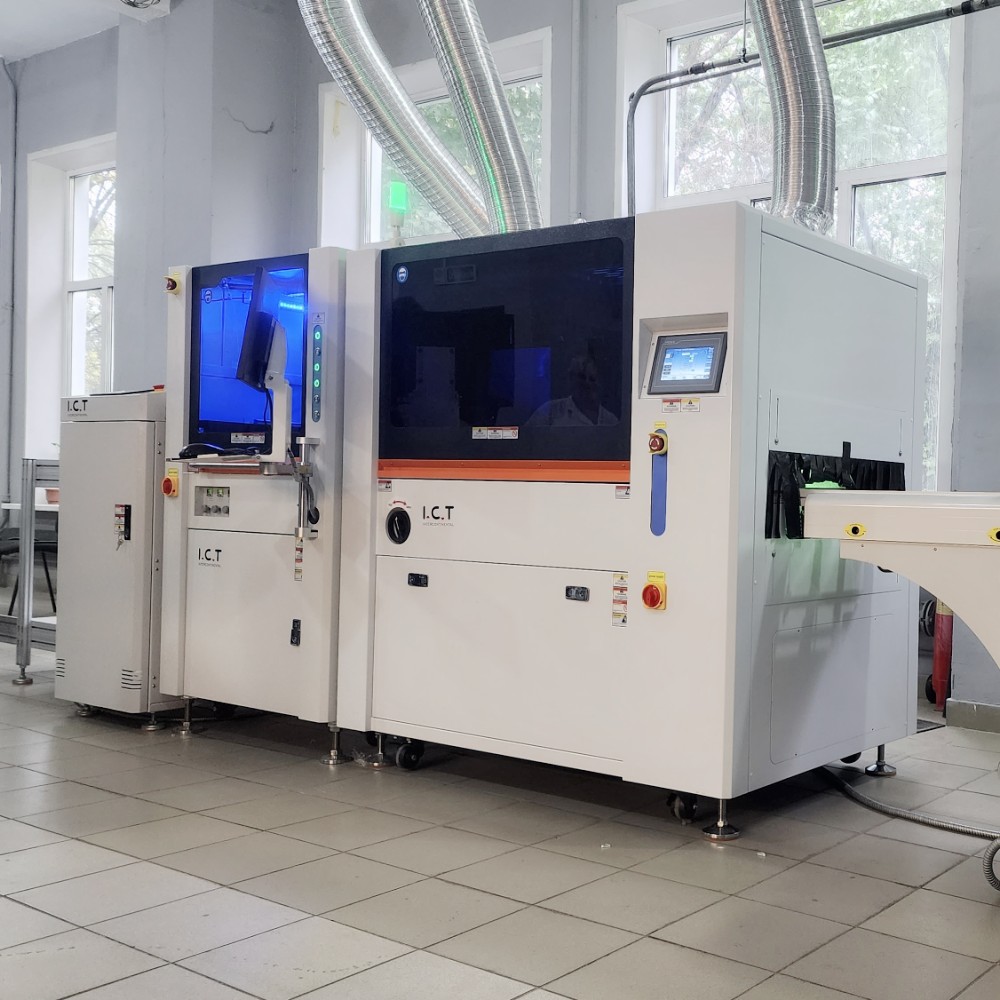

Online Coating Line with Return Plate

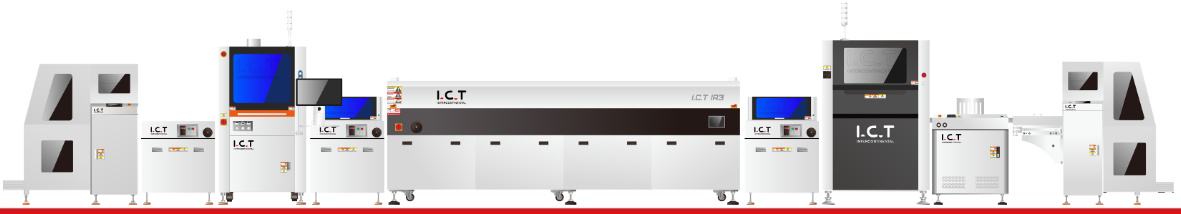

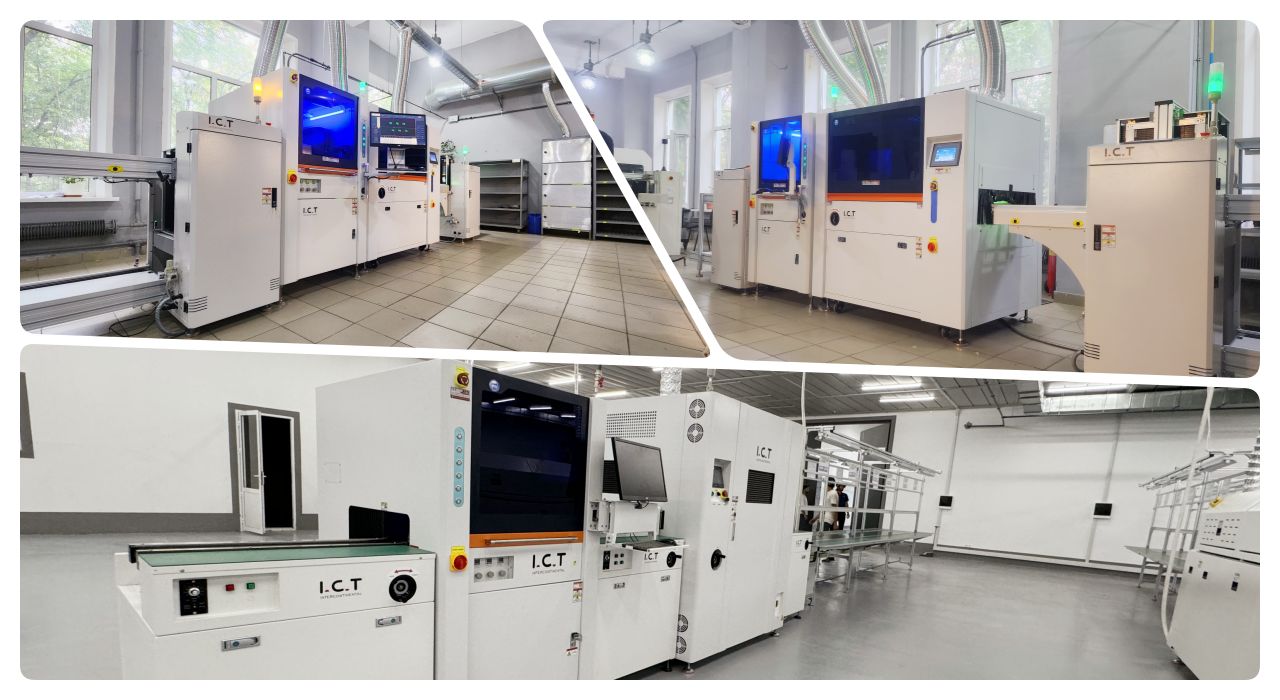

PCBA Coating Line

Product Description

I.C.T selective coating machine is the new benchmark for simple and efficient PCBA coating. Its easy program making, fast line change settings and high repeatability bring the best results in all directions. It matches different applications and meets various needs. It is widely used in the fields of drive power, industrial control, LED, automotive electronics, communication, instrumentation, consumer electronics, electronic appliances, military, medical boil, etc.

Advantage of Selective Conformal Coating Machines

1. Simple: Combine with the international advanced concept, based on the operating system designed in the East, easy to learn.

2. Professional: Learn the advanced design concept of imported coating machine, and the core parts of the machine are all imported top brands.

3. Hedging: Imported hardware configuration, low failure rate in production, and long service life of more than ten years.

4. Safety: Based on the international common design rules, close to the imported coating machine level, the highest safety level.

5. Stability: Mature software, hardware and top production process to ensure the stability of each machine.

This is the process with PCBA Selective Conformal Coating Machine need to be AUTOMATED

the process with PCBA Conformal Coating Machine

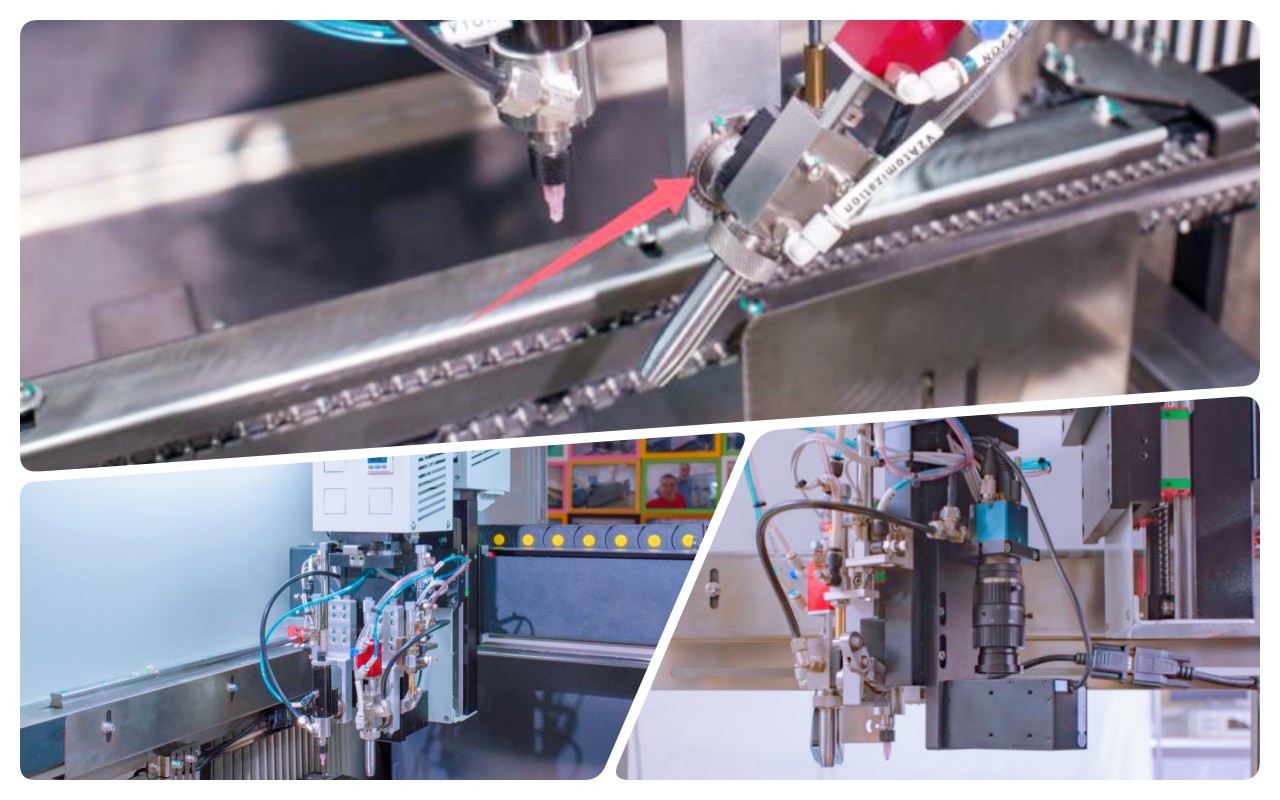

Coating dispensing system

Double suspended direct-connected glue valve structure. The glue valves are independently controlled by two high-speed solenoid valves to ensure accurate and stable glue dispensing times and volumes. Double side slides ensure the accuracy and stability of the glue valves before and after operation.

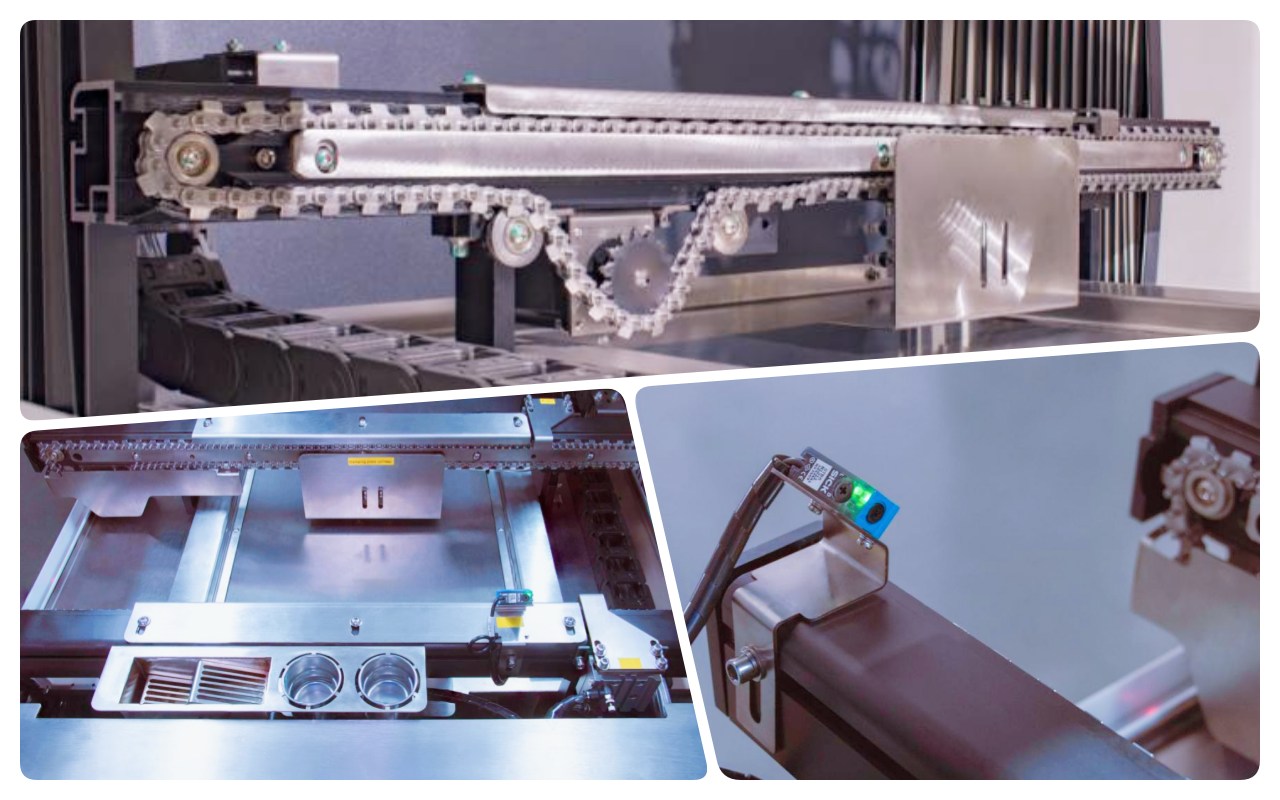

Transport system

The unique chain transport system effectively prevents clogging of the PCBs, the motor controls the speed, the stop position is precise, the track width can be adjusted semi-automatically and the PCBs can enter and exit freely. The track can also withstand larger weights of PCBs without deformation.

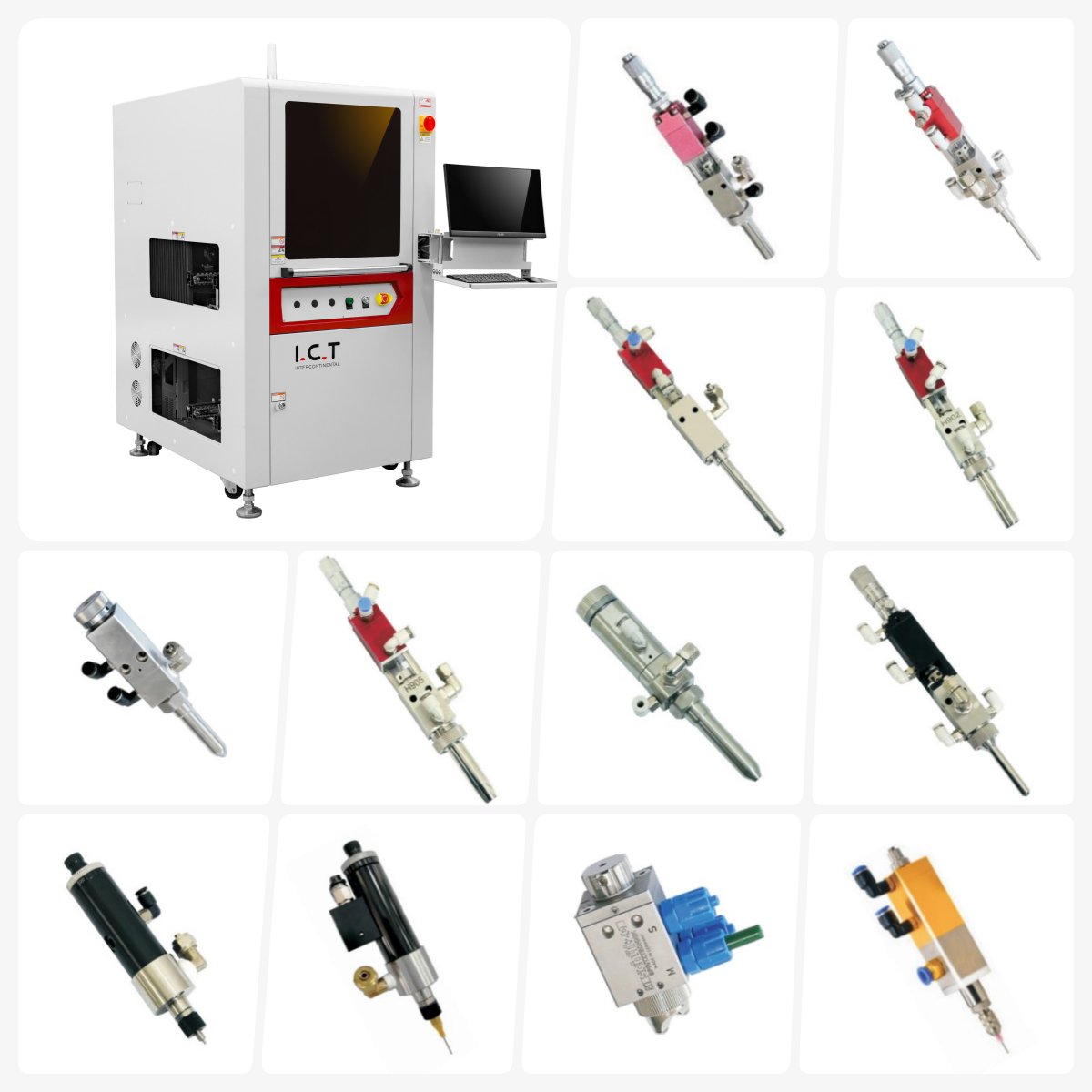

Conformal Coating Valves

H-809

Extended needle

atomization valve

H-808

Precision small atomization valve

H-905

Precision atomization valve

H-904

Three-mode universal valve

>>>> More types >>>>

Specifications

Selective Conformal Coating Machines
Model	I.C.T-T550	I.C.T-T550U	I.C.T-T600	I.C.T-T650
Number of valves	2 (atomization valve 1 head, precision valve 1 head)	2 (atomization valve 1 head, precision valve 1 head)	2 (atomization valve 2 head)	4 (atomization valve 2 head, precision valve 2 head)

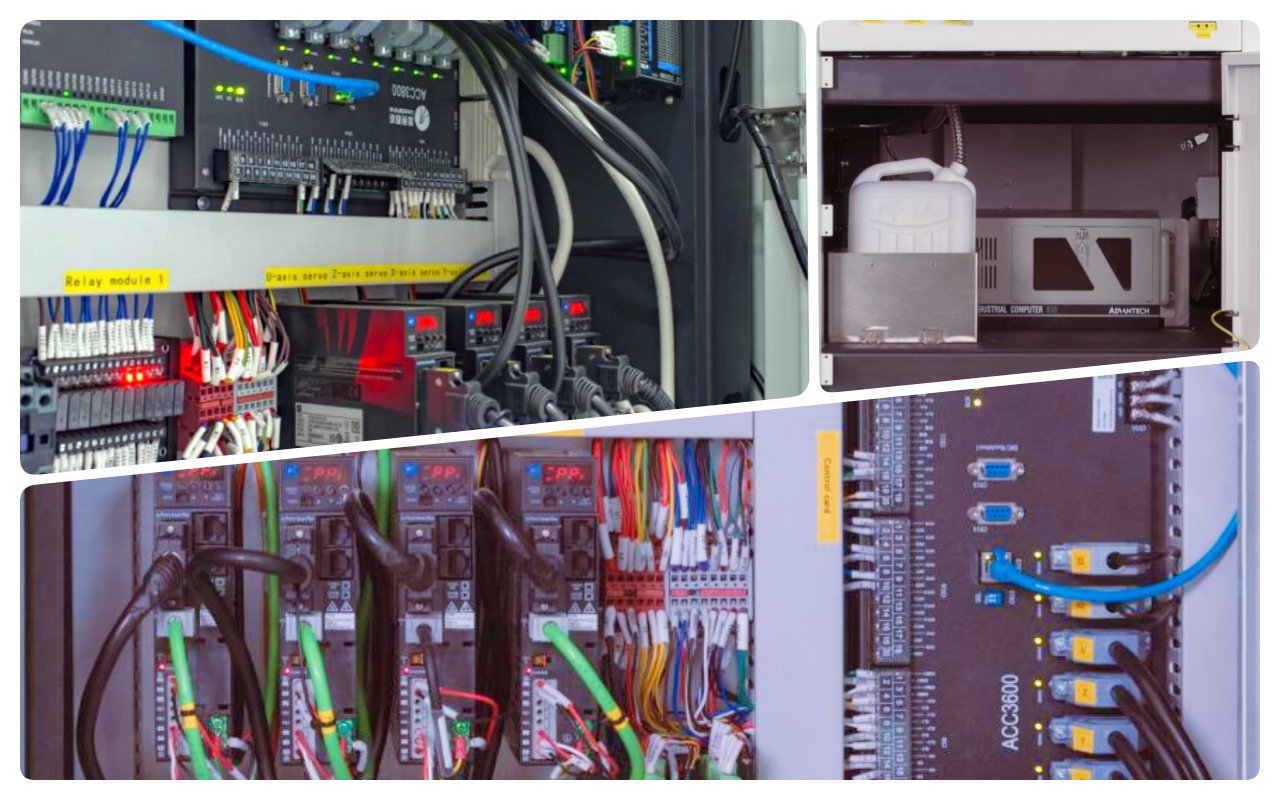

Control method	PC + Motion Control Card
Number of spindles	X, Y, Z	X, Y, Z,U	X, Y, Z	X, Y, Z
PCB size	5050~450460mm
Spindle drive	Imported servo motor+ball screw module
Automatic cleaning of valves	with 5L Pressure Tank
Power supply	AC 220V±10%, 50/60HZ, 2.2KW
Dimension	L910W1600H1700mm
Net weight	1000KG
