I.C.T-Lyra622/622N
I.C.T

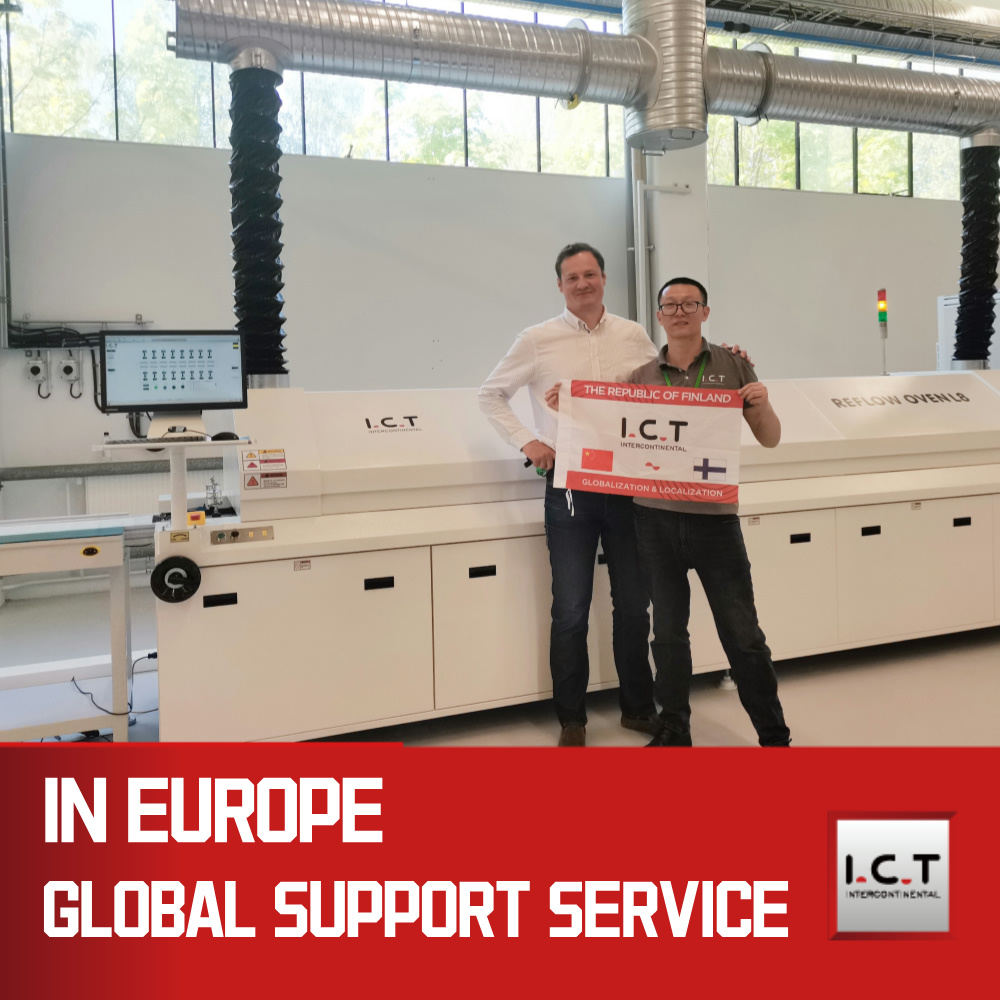

Reflow Oven 600mm
Availability: | |
---|---|
Quantity: | |
I.C.T Lyra series lead-free reflow oven I.C.T’s mature product after years of market testing. Lyra Series Reflow oven has maintained a larger share of the market for many years. Its unparalleled heating performance and temperature control system meets the requirements of various soldering processes, It is I.C.T’s crystallization of years technical research and development.
Lyra Series Lead-free reflow is high-end reflow products committed to keeping up with market demand to enhance customers competitiveness.Its new design concept fully meets the needs of increasingly diverse processes, And considering the future direction of the industry, entirely suitable for communications, automotive electronics, home appliances, computers and other consumer electronic products.
Reflow Oven 600mm
Lyra Series Reflow Oven 600mm
High effective flux management system
High stability nitrogen protection system
High performance cooling system
Support the CBS, Split Unit
Model | Lyra 622/622N | Lyra 733/733N | Lyra 933/ 933N |
Quantity of preheating zones | 6 | 7 | 9 |
Quantity of peak zones | 2 | 3 | 3 |
Max. soldering temperature | pre-heating zones 300 °C and peak zones350 °C | ||
Quantity of cooling zones | 2 | 2 | 3 |
Mesh Width | Standard 440mm( Option 560 & 680mm ) | ||
Rail Width | Single Rail: 50 - 460mm, Option: 50 - 686mm other Width on request. Dual Rail Standard: 50 - 290mm*2 | ||
Dimensions | 5150*1400*1500mm | 6250*1400*1500mm | 6950*1400*1500mm |
Weight | 2400 / 2600 kg | 2800 / 3000 kg | 3200 /3400 kg |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
I.C.T Lyra series lead-free reflow oven I.C.T’s mature product after years of market testing. Lyra Series Reflow oven has maintained a larger share of the market for many years. Its unparalleled heating performance and temperature control system meets the requirements of various soldering processes, It is I.C.T’s crystallization of years technical research and development.
Lyra Series Lead-free reflow is high-end reflow products committed to keeping up with market demand to enhance customers competitiveness.Its new design concept fully meets the needs of increasingly diverse processes, And considering the future direction of the industry, entirely suitable for communications, automotive electronics, home appliances, computers and other consumer electronic products.
Reflow Oven 600mm
Lyra Series Reflow Oven 600mm
High effective flux management system
High stability nitrogen protection system
High performance cooling system
Support the CBS, Split Unit
Model | Lyra 622/622N | Lyra 733/733N | Lyra 933/ 933N |
Quantity of preheating zones | 6 | 7 | 9 |
Quantity of peak zones | 2 | 3 | 3 |
Max. soldering temperature | pre-heating zones 300 °C and peak zones350 °C | ||
Quantity of cooling zones | 2 | 2 | 3 |
Mesh Width | Standard 440mm( Option 560 & 680mm ) | ||
Rail Width | Single Rail: 50 - 460mm, Option: 50 - 686mm other Width on request. Dual Rail Standard: 50 - 290mm*2 | ||
Dimensions | 5150*1400*1500mm | 6250*1400*1500mm | 6950*1400*1500mm |
Weight | 2400 / 2600 kg | 2800 / 3000 kg | 3200 /3400 kg |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
Question: What is a 600mm reflow oven?
Answer: A 600mm reflow oven is a type of reflow oven used in Surface Mount Technology (SMT) manufacturing, characterized by its 600mm wide conveyor belt. This width allows it to accommodate larger printed circuit boards (PCBs) and high-volume production runs. The 600mm reflow oven is designed to provide precise temperature control across multiple heating zones, ensuring consistent and reliable soldering of electronic components to PCBs.
Question: How does a 600mm reflow oven enhance the PCB soldering process?
Answer: A 600mm reflow oven enhances the PCB soldering process by offering several advantages:
Wider Conveyor Belt: The 600mm width allows for larger PCBs or multiple smaller boards to be processed simultaneously, increasing production efficiency.
Multiple Heating Zones: Typically, these ovens have multiple temperature-controlled zones (preheat, soak, reflow, and cooling), ensuring precise thermal profiles and consistent soldering quality.
Improved Heat Distribution: The wide design helps maintain even heat distribution across the entire board, reducing the risk of cold or overheated spots.
Scalability: Ideal for both small-scale and high-volume production, providing flexibility for various manufacturing needs.
Question: What are the benefits of using a 600mm reflow oven in electronics manufacturing?
Answer: Using a 600mm reflow oven in electronics manufacturing offers several key benefits:
Increased Throughput: The wider conveyor allows for processing larger boards or multiple boards at once, boosting production capacity.
High Precision: Advanced temperature control across multiple zones ensures consistent and high-quality solder joints.
Versatility: Suitable for a wide range of PCB sizes and component types, making it adaptable to different manufacturing requirements.
Reduced Defects: Enhanced heat distribution minimizes the risk of soldering defects, improving the reliability and performance of the final products.
Cost-Effectiveness: By increasing production efficiency and reducing the need for rework, a 600mm reflow oven can lower overall manufacturing costs.
Question: What is a 600mm reflow oven?
Answer: A 600mm reflow oven is a type of reflow oven used in Surface Mount Technology (SMT) manufacturing, characterized by its 600mm wide conveyor belt. This width allows it to accommodate larger printed circuit boards (PCBs) and high-volume production runs. The 600mm reflow oven is designed to provide precise temperature control across multiple heating zones, ensuring consistent and reliable soldering of electronic components to PCBs.
Question: How does a 600mm reflow oven enhance the PCB soldering process?
Answer: A 600mm reflow oven enhances the PCB soldering process by offering several advantages:
Wider Conveyor Belt: The 600mm width allows for larger PCBs or multiple smaller boards to be processed simultaneously, increasing production efficiency.
Multiple Heating Zones: Typically, these ovens have multiple temperature-controlled zones (preheat, soak, reflow, and cooling), ensuring precise thermal profiles and consistent soldering quality.
Improved Heat Distribution: The wide design helps maintain even heat distribution across the entire board, reducing the risk of cold or overheated spots.
Scalability: Ideal for both small-scale and high-volume production, providing flexibility for various manufacturing needs.
Question: What are the benefits of using a 600mm reflow oven in electronics manufacturing?
Answer: Using a 600mm reflow oven in electronics manufacturing offers several key benefits:
Increased Throughput: The wider conveyor allows for processing larger boards or multiple boards at once, boosting production capacity.
High Precision: Advanced temperature control across multiple zones ensures consistent and high-quality solder joints.
Versatility: Suitable for a wide range of PCB sizes and component types, making it adaptable to different manufacturing requirements.
Reduced Defects: Enhanced heat distribution minimizes the risk of soldering defects, improving the reliability and performance of the final products.
Cost-Effectiveness: By increasing production efficiency and reducing the need for rework, a 600mm reflow oven can lower overall manufacturing costs.
