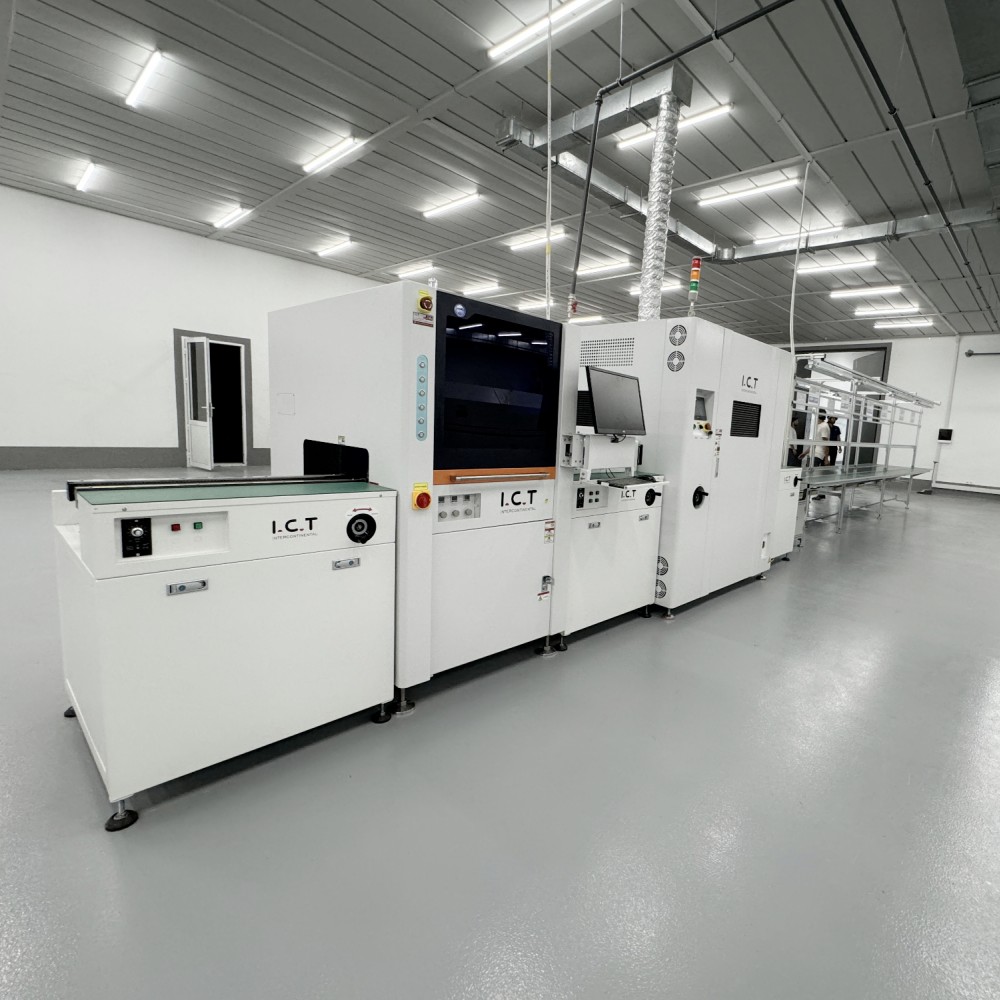

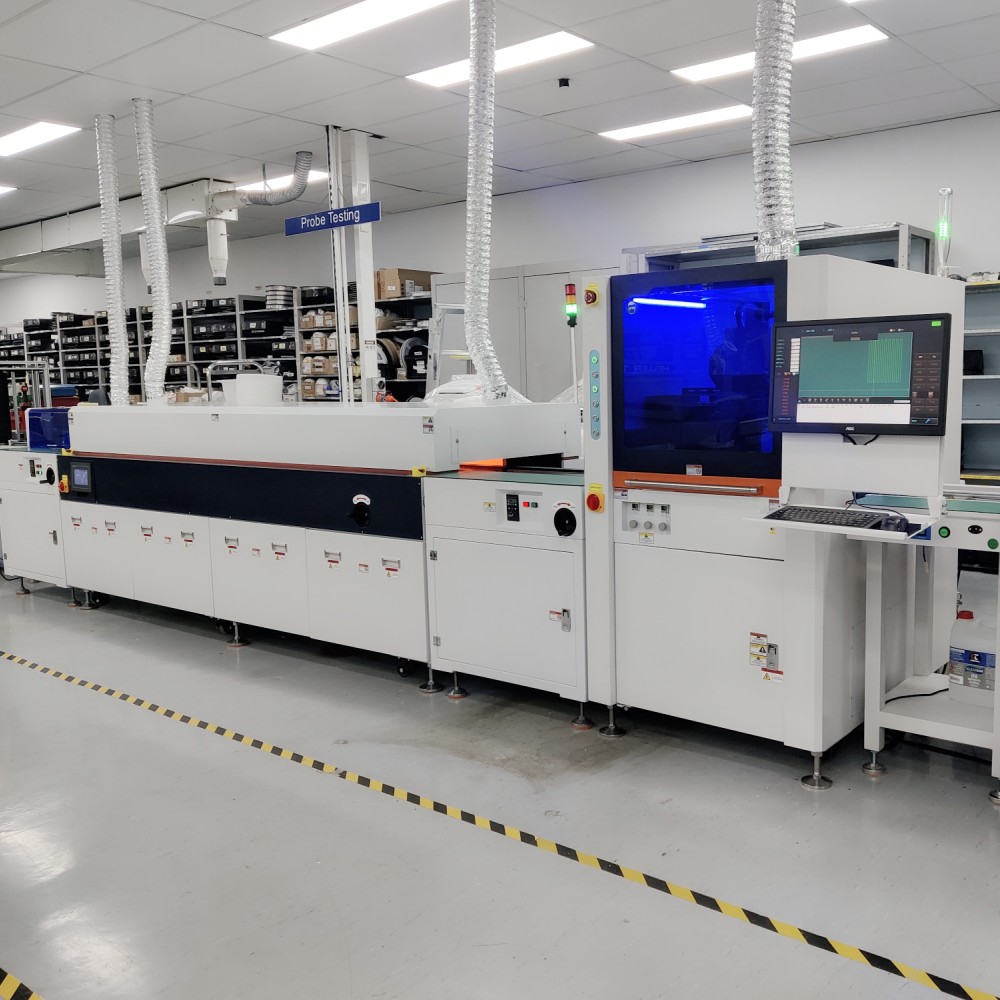

I.C.T丨SMT Conformal PCBA Selective Coating Line Solution for PCBAs

1PLC+PC control, fault acoustic-optic alarm and menu display.

2. Continuous surface spraying, automatic detecting initial distance and coated width.

3. Servo motor reciprocating coating, can be arbitrary set about PCB before and after the offset.

4. Digital parameter air pressure regulation, precision pressure regulating valve, and configure digital pressure gauge.

5. Overall molding of the base plate, and the independent pure steel gantry is used to ensure that the conveyor is parallel and vertical to eachaxis.

6. The three axis linkage adjustment system has superb dynamic characteristics and quickly realizes the adjustment. Drive by direct connection motor, fast and ensure high precision.

7. The unique conveyor system can effectively prevent stuck PCB. The motor controls the speed and the stop position is precise.

8. Dust prevention design: the conveyor inlet and outlet are equipped with wind screens to prevent exhaust gas from leaking out, and independent exhaust gas outlets are equipped.

9. Anti blocking glue function, the glue valve will automatically move to the soaking area to prevent the glue valve mouth from curing and affecting the coating effect.

10. Windows 10, friendly MMI interface, teaching and navigation function. Operation log, fault record analysis and other diagnostic functions. New program is controlled within 5-10 minutes.

11. Complete alarm prompt and production statistics report.

PCBA Coating Flipper

1. Modular design, optional assembly as per client's requirement.
2.Rugged steel design, improves equipment stability .
3.Smooth stainless steel screw to adjust the width of the rail.
4.Variable speed control.
5.Circuit board testing mode.
6.Using a dedicated aluminum slot for transfer orbit to prevent PCB stuck.
7.Heavier bottom design, not easily shift.

PCBA Coating Conveyor

1. Modular design, optional assembly as per client`s requirement.

2. Rugged steel design, improves equipment stability.

3. Smooth stainless steel screw to adjust the width of the rail.

4. Variable speed control.

5. Using a dedicated aluminum slot for transfer orbit to prevent PCB stuck. 6. Heavier bottom design, not easily shift.

PCBA Coating IR Curing Oven

1. Control system: PLC+touch screen make sure machine working steadily;

2. Top zones IR heating, good heater compensatory, high thermal efficiency, energy saving, speedy heating;

3. Use imported big current solid relay, without touch point output, safe, reliable, improve thermal efficiency and lifetime;

4. Transmission system use imported motors, speed adjuster, smoothly running, adjustable speed at 100~3000mm/min;

5. I.C.T design makes temperature from each zone is not influenced by neighbour to ensure accurate temperature curve, to achieve high adaptability;

6. Using zero gas source design, furnace cover with motor lifting, providing security;

7. I.C.T using third-party over-temperature protection, multiple layers protection to ensure safe operation;

8. Products comply with CE, CCC, UL and other standard;

9. Can be equipped with bottom return line, heating under the track, and return line heating.
