Panasonic NPM-W2S Cheap Automatic Smt Pick And Place Machine For Sheets

Introduction

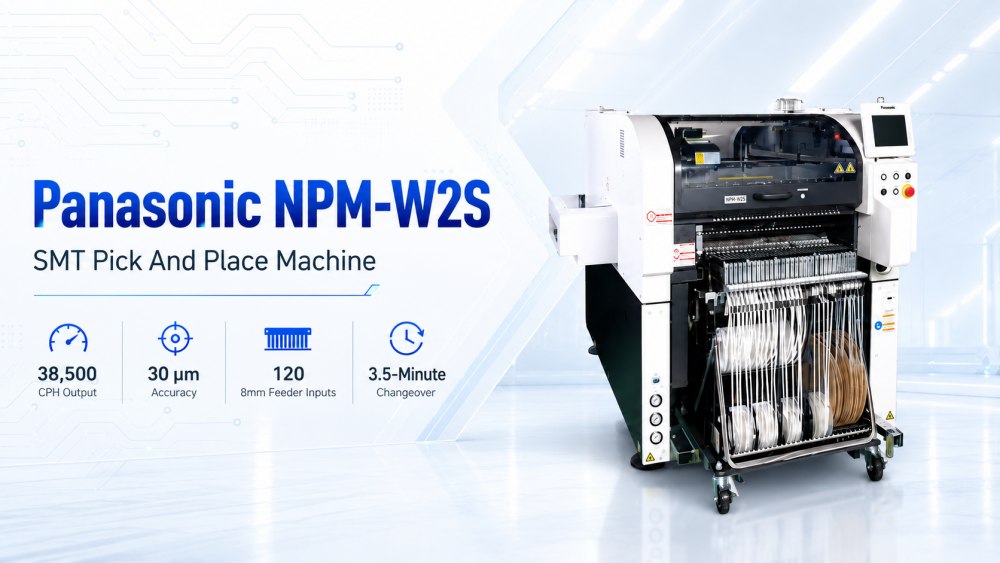

Panasonic NPM-W2S

The highly flexible single-beam NPM-W2S is an ideal placement solution for manufacturers who value reduced setup and changeover time over volume... At a time when your lot sizes are getting smaller, customers need to tighten control of work in process, schedule more efficiently and expand feeder capacity. This need is the premise behind the NPM-W2S. The NPM-W2S is based on the NPM-W2 platform, but with the simplification of employing a single beam to access all 120 8mm inputs for increased flexibility, with an output of 38,500 CPH and accuracy of 30um.

The NPM-W2S enables customer to afford more platforms per line to increase available feeder capacity for common setups and reduced changeover. The NPM-W2S also makes an affordable line booster at the beginning or end of an existing NPM line.

Panasonic Pick and Place Machine

Shares overlapping capabilities of the NPM-W2, with one of the two beams removed
High output of up to 38.5k CPH, as well as odd-form capability with stackable stick feed support, 100N placement force and Pin-in-Paste lighting
Efficient 3.5-minute Changeovers capability per module through automated functions
Track and trace from workorder level to reference level to complete route control
Award-winning camera technology merges component alignment, chip thickness, and 3D coplanarity inspection into a single pass to ensure high productivity and quality

Model ID	NPM-W2S
Model No.	NM-EJM5E
PCB Dimensions (mm) *	Single-lane Batch mounting: L 50 x W 50 ~ L 750 x W 550 2-position mounting: L 50 x W 50 ~ L 350 x W 550 [*1]
PCB Dimensions (mm) *	Dual-lane Dual transfer (Batch): L 50 × W 50 ~ L 750 × W 260 Dual transfer (2-position): L 50 × W 50 ~ L 350 × W 260 Single transfer (Batch): L 50 × W 50 ~ L 750 × W 510 Single transfer (2-position): L 50 × W 50 ~ L 350 × W 510 [*1]
Electric Source	3-phase AC 200, 220, 380, 400, 420, 480 V 2.8 kVA
Pneumatic Source *	0.5 MPa, 200 L /min (A.N.R.) [*2]
Dimensions (mm) *	W 1,280 [3] × D 2,332 [4] × H 1,444 [5] [2]
Mass	2,470 kg (Only for main body : This differs depending on the option configuration)

* Values such as maximum speed may vary depending on operating conditions.
* Please contact I.C.T for details.

FAQ:

Q: How much is an SMT line?

The cost of an SMT (Surface Mount Technology) production line can vary significantly based on several factors, including the complexity of the assembly process, the level of automation, the number and types of machines used (e.g., stencil printer, pick-and-place machine, reflow oven), and the production volume. SMT lines can range from tens of thousands to millions of dollars. It's essential to consult with equipment suppliers and manufacturers to get specific pricing tailored to your production needs.

Q: What is the name of a pick and place machine?

Pick-and-place machines are manufactured by various companies, and there are many different models available. Some well-known manufacturers of pick-and-place machines include Yamaha, JUKI, Siemens, Panasonic, Mycronic, and Assembleon (now part of Kulicke & Soffa). Each of these manufacturers offers multiple models with varying features and capabilities.

Q: What is a pick and place robot for PCB component placement?

A pick-and-place robot, specifically designed for PCB (printed circuit board) component placement, is an automated robotic system that can accurately pick up electronic components from feeders or trays and place them onto the PCB during the assembly process. These robots are commonly used in SMT (Surface Mount Technology) assembly lines to improve efficiency and precision in component placement. They can work alongside or replace traditional pick-and-place machines, depending on the production requirements.
