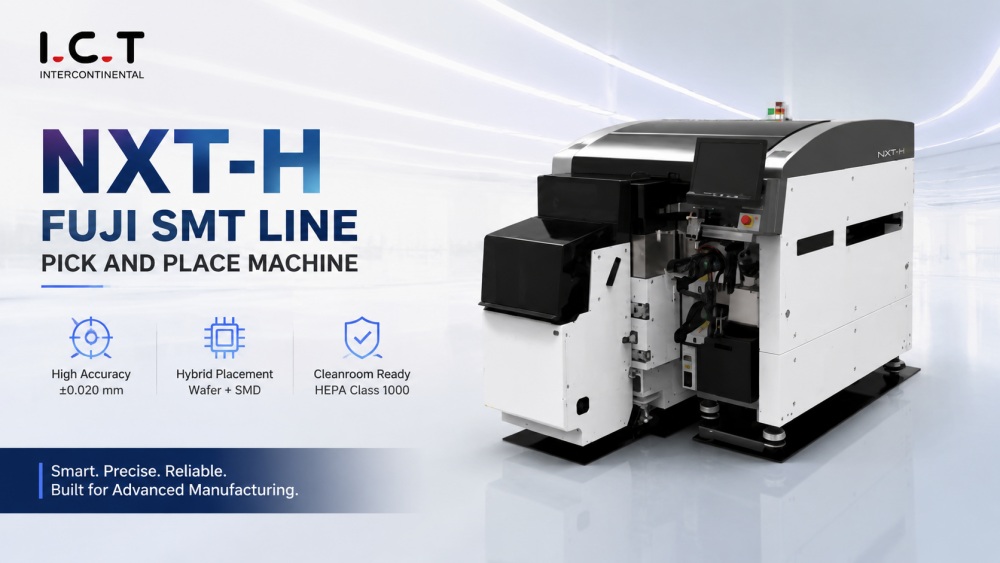

FUJI NXT-H Smt Line Pick And Place Machine

Introduction

FUJI NXT-H

Hybrid Placing Machine

This machine is based on the surface mount technology for placing SMD parts in high speed and incorporates semi-conductor technology for placing die parts with high accuracy. The NXT-H allows you to go form a batch process using dedicated machines to an innovative inline production process.

Supports panels up to 610 x 610 mm

For small power modules and sensor modules

Handles dies up to 24 x 24 mm

For complex modules such as communication and sensor modules

FUJI Pick and Place Machine

Functions for high-mix production
Wafer map display
Inside machine is kept clean
Maintenance guidance

1. Hybrid placement of wafers and SMDs
Wafer, tray part, and reel part placement in a single unit. Supports production mainly using feeder parts, or mainly using wafers and trays by exchanging units.
2. High accuracy placement
High rigidity construction with linear motor movement and high resolution cameras. Combines the optimum placing pressure, high accuracy and high quality using advanced control technology.
3. A HEPA filter provides a cleanroom class of 1000
With the assumption that this machine is going to be used in cleanrooms, the XY robot is cleanroom capable. By setting a HEPA filter, you can get an even better environment for semiconductors.
4. Easy Operation
Equipped with a large 15 inch touchscreen panel and graphical interface. United interface controls both machine and MWU12i operation. Covers both wafer map data management and format conversion. *Individual user formats can be supported separately.

FUJI SMT MACHINE

I.C.T - Our Company

SMT Stencil printer

About I.C.T:

I.C.T is a leading provider of factory planning solution. We have 3 wholly-owned factories, providing professional consultation and services for global customers. We have more than 22 years of eletronic overall solutions. We not only provide a complete set of equipment, but also provide full range of technical support and services, and give customers more reasonable professional advice. We help many customersv to set up factories in LED, TV, mobile phone, DVB, EMS and other indutries all over the world. We are to set up factories in LED, TV, mobile phone, DVB, EMS and other indutries all over the world. We are trustworthy.

SMT Stencil printer

Exhibition

SMT Stencil printer

For SMT Factory Setup, We Can Do for You:

1. We Provide Full SMT Solution for You

2. We Provide Core Technology With Our Equipments

3. We Provide The Most Professional Tech Service

4. We Have Wealthy Experience on SMT Factory Setup

5. We Can Solve Any Question About SMT

SMT Stencil printer

FAQ:

Q: What we can do for you?

A: Total SMT Machines and Solution, professional Technical Support and Service.

Q:Are you a trade company or a manufacturer?

A: OEM & ODM service are available.

Q: What your main customers?

A: Huawei,Foxconn,Vtech,Sumida,Kemet,Vishay,Bosch,Canon.

Q: How many machines are used in SMT?

A: The number of machines used in a Surface Mount Technology (SMT) production line can vary depending on the complexity of the assembly process and the production volume. A typical SMT line includes several machines, such as stencil printers, pick-and-place machines, reflow soldering ovens, and inspection equipment. The specific combination and quantity of machines depend on the manufacturing requirements and the level of automation desired.

Q: What is an NXT machine?

A: In the context of electronics manufacturing and SMT (Surface Mount Technology), an "NXT machine" often refers to a pick-and-place machine from the Fuji NXT series. These machines are designed for automated component placement on printed circuit boards (PCBs). Fuji's NXT series is known for its precision and efficiency in electronics assembly.

Q: What is NXT in SMT?

A: "NXT" in SMT specifically refers to the Fuji NXT series of pick-and-place machines. These machines are a part of Fuji's SMT equipment lineup and are used for accurately picking up electronic components and placing them onto PCBs during the assembly process. Fuji NXT machines are renowned for their advanced technology and high-speed, high-accuracy performance in SMT assembly.
