I.C.T-250 | SMT PCB Surface Cleaning Machine

Share to:

I.C.T-350 | PCB Cleaning Machine

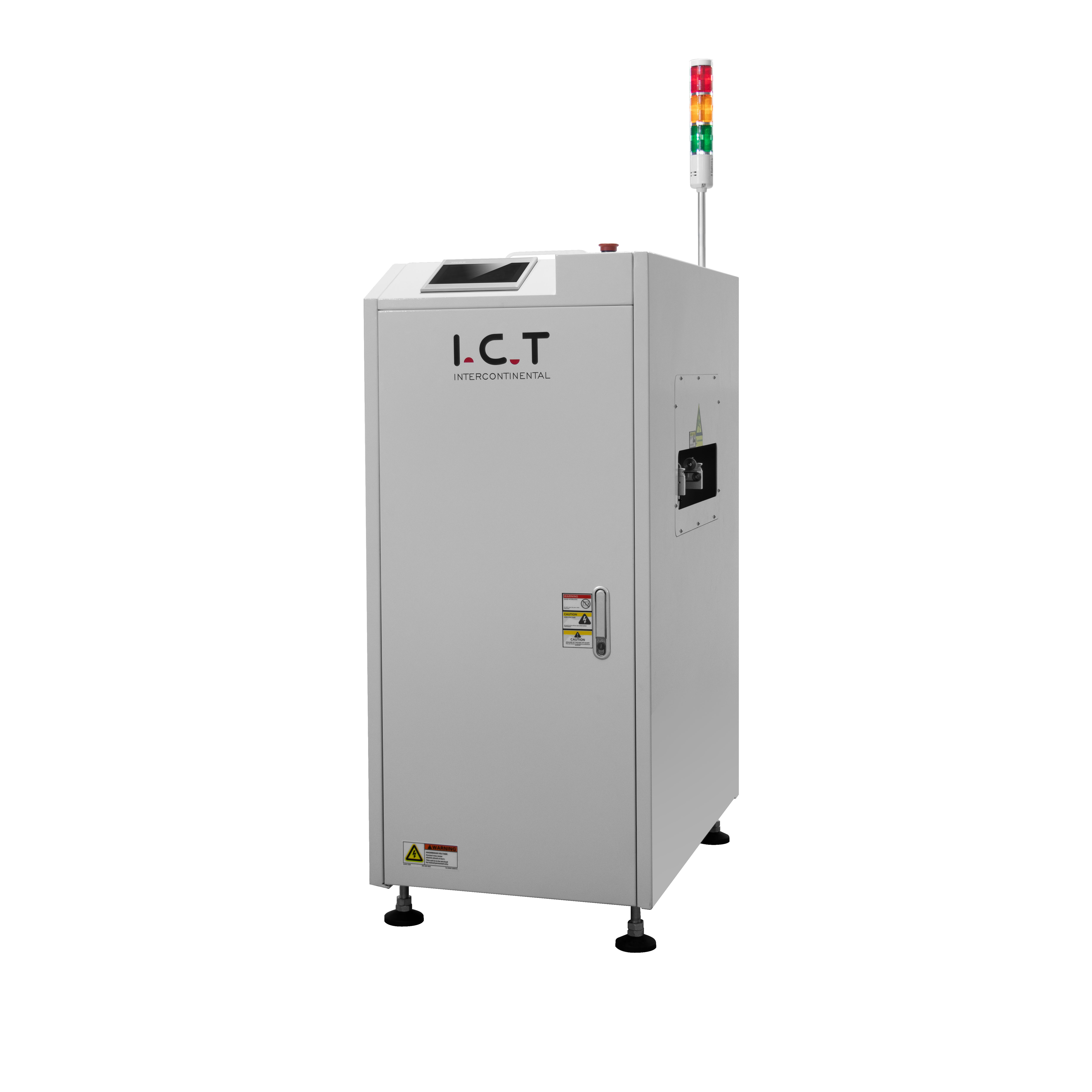

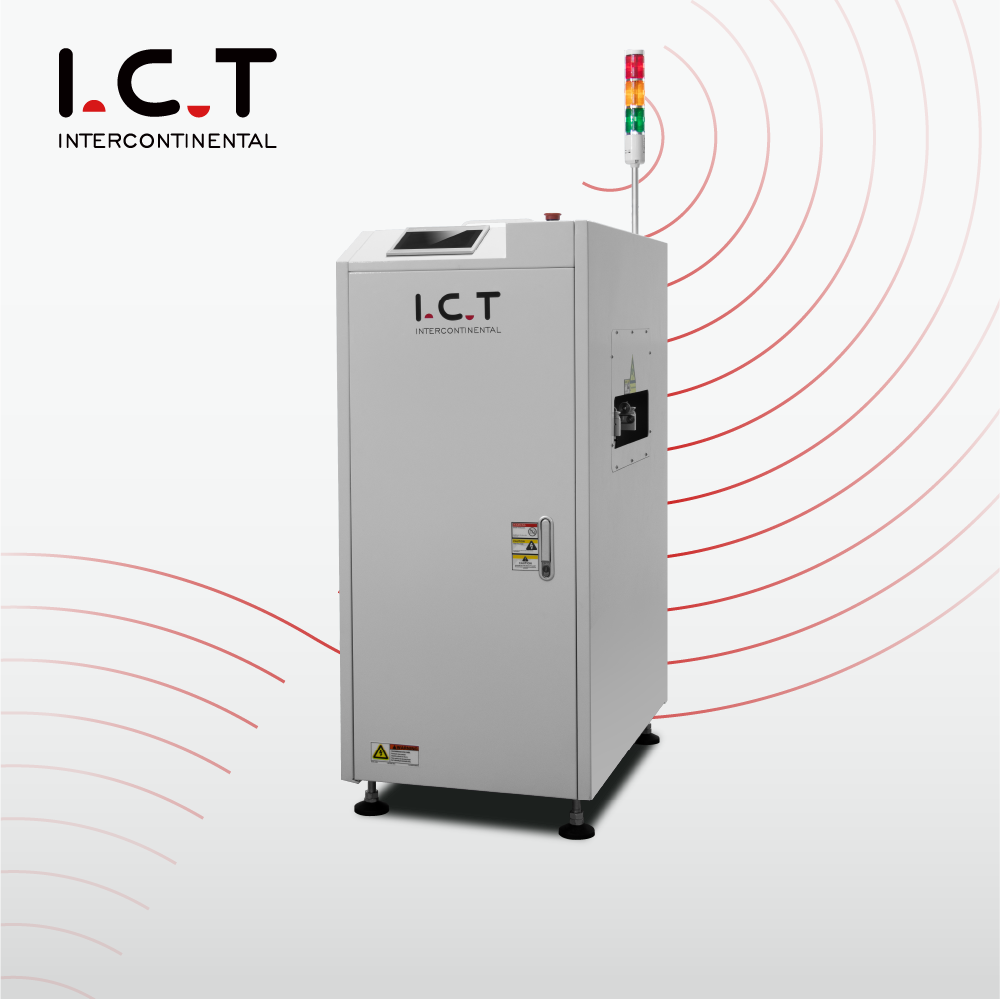

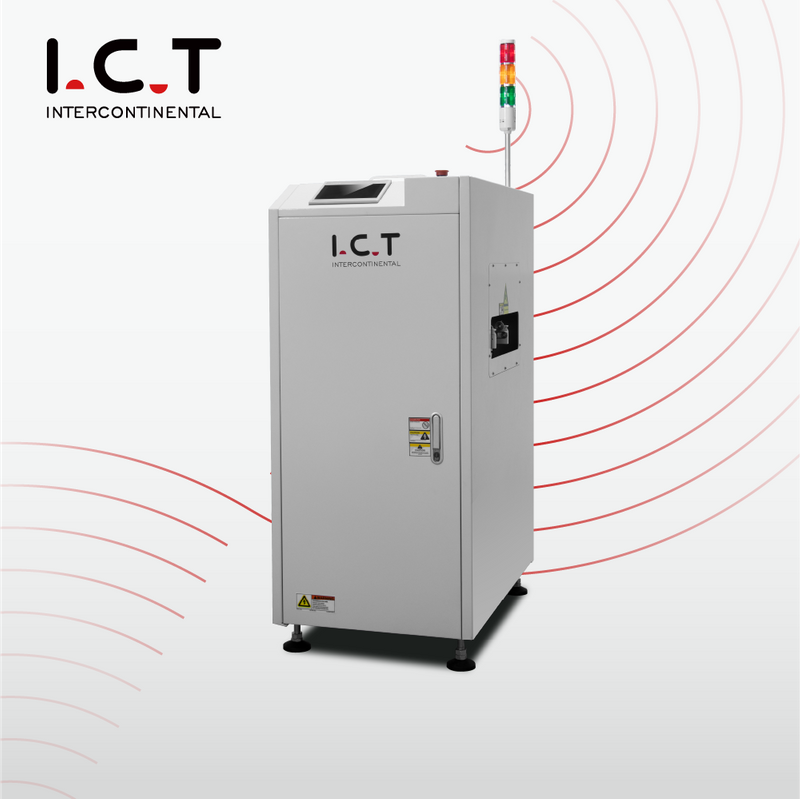

Name: I.C.T-350 | PCB Cleaning Machine
Brand: I.C.T
Rating: 5.0 (15 reviews)

I.C.T carries the full range of SMT PCB cleaning machines. Get fully cleaned boards no matter what your installation requirements.
PCB CLEANING MACHINES - For printed circuit boards, flux no-clean, solder paste misprints, small parts.

Model:
I.C.T-350
Brand:
I.C.T

Availability:

Quantity:



Inquire Add to Basket

I.C.T-350 | PCB Cleaning Machine

Introduce:

SMT PCB Surface Cleaning Machine

Introduction:

1. Panasonic PLC control system, touch screen operation, simple and easy to understand.

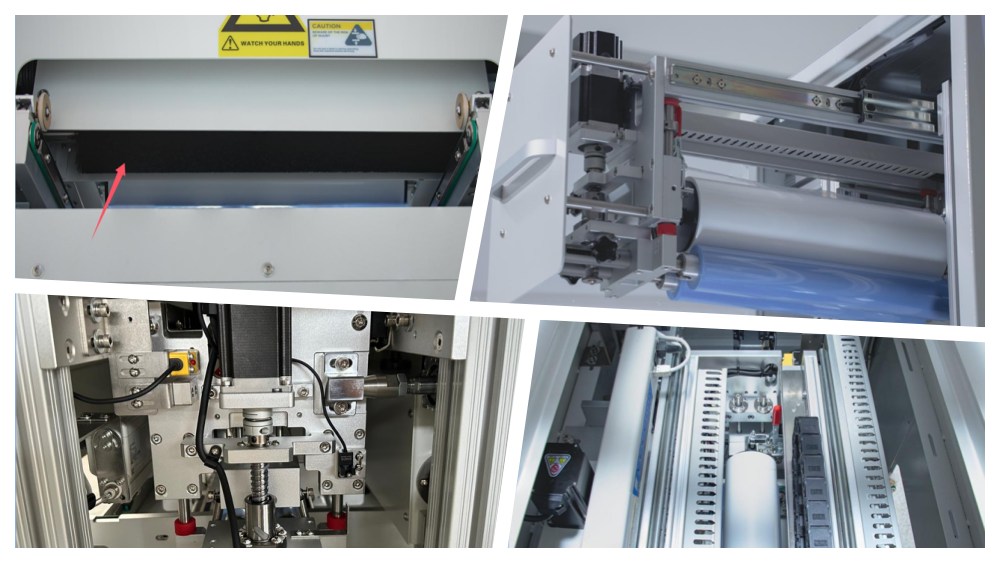

2. Double imported dust roller, automatic lifting design.

3. The unique design of the brush device can effectively clean the larger dust and protect the wear of the dust roller.

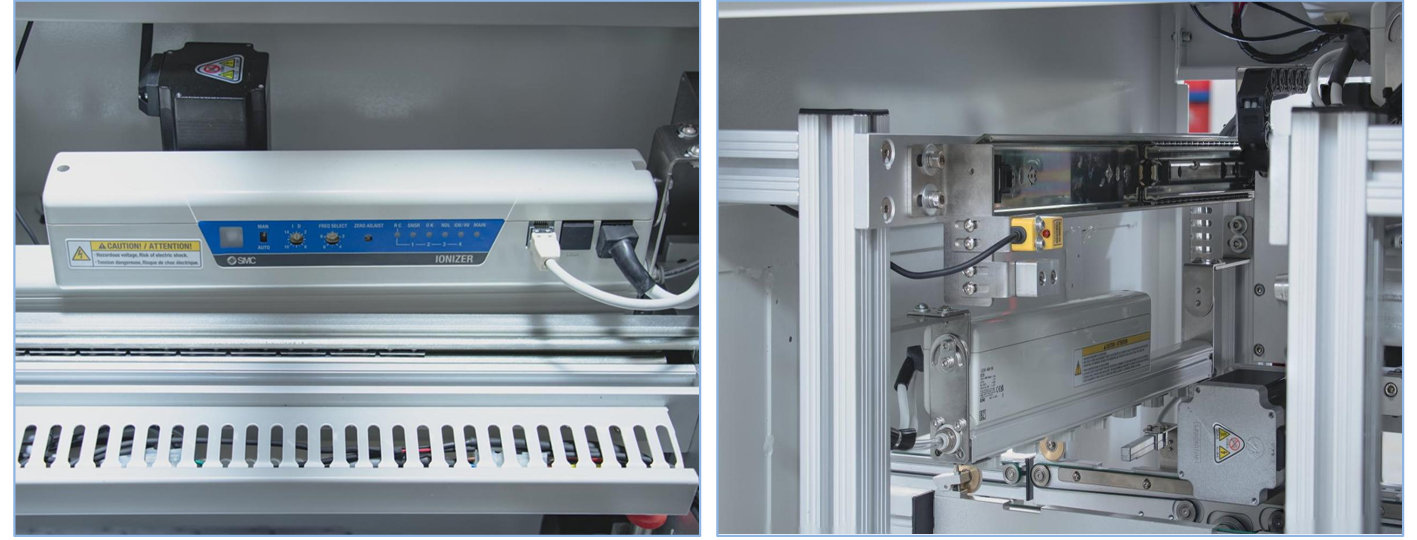

4. 1 electrostatic eliminator in each inlet and outlet can efficiently remove static electricity from PCB.

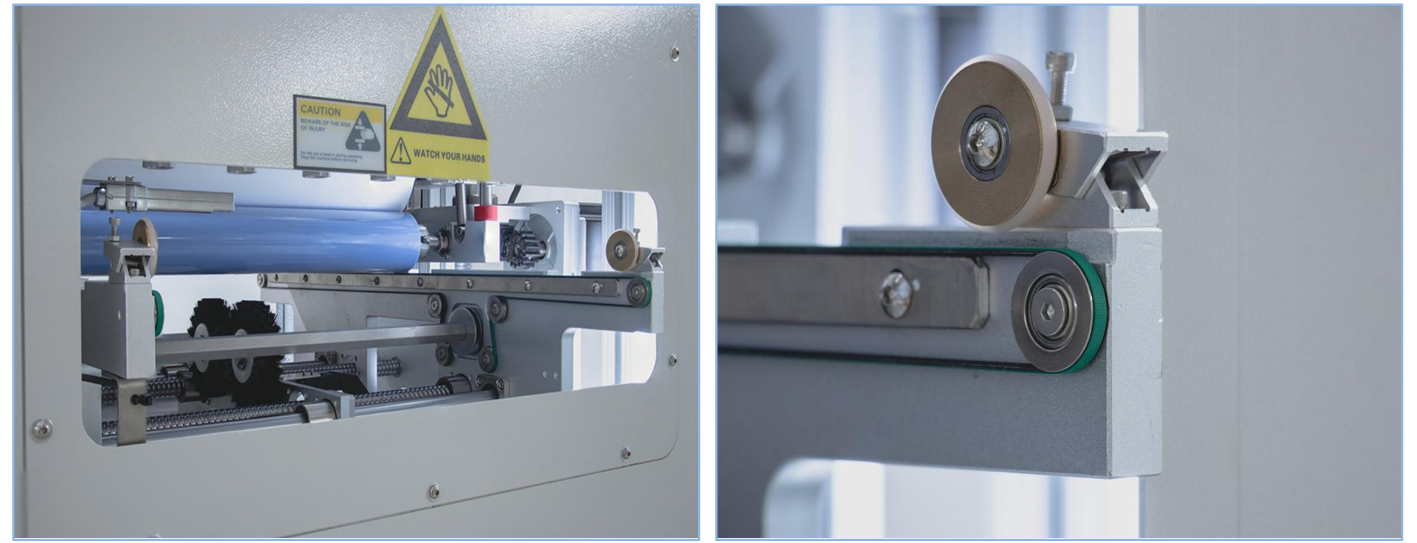

5. Transmission by stepper motor drive, precise and stable.

6. The central support function should play a key role in the possible deformation of the big pcb.

7. Modular design of the whole machine, convenient and quick maintenance.

8. SMEMA interface.

Features:

Effect contrast:

Specification:

Item	I.C.T-PC350	I.C.T-PC450
PCB size	50 x 50mm ~ 450 x 350mm	50 x 50mm ~ 500 x 450mm
PCB Thickness	2-3mm (Option: 4-6mm)
PCB Direction	L to R or R to L
Transport Height	900±20mm (or Customer Specified)
Control System	Panasonic PLC
Operation Panel	Touch screen
Number of Brushes	1pcs
Number of Dust Roller	2pcs
Number of Sticky Paper	1pcs
Power Supply	1 PH AC 220V 50/60Hz
Dimension	L550W750H1600mm	L650W850H1600mm
Weight	140KG	160KG
