High-end SMT Conveyor
I.C.T
Availability: | |
---|---|
Quantity: | |

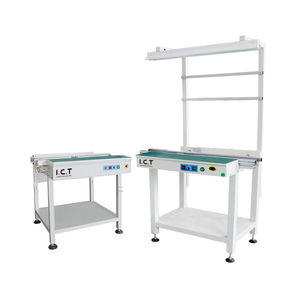

I.C.T High-end SMT Conveyor
PCB conveyor, PCB magazine loader, PCBA coating conveyor, pcb unloader, smt magazine loader, pcb ng ok unloader, smt vacuum loader, pcb automatic magazine loader, pcb vacuum loader, smt telescopic conveyor, smt shuttle conveyor, 90 Degree SMT magazine unloader, dual-rails SMT unloader, 90 degree SMT magazine unloader, PCB flipper/ inverter, PCB stacker/ destacker
We are professional SMT/DIP manufacturer for reflow oven, SMT solder paste printer, pick and place machine, SMT conveyor, PCB loader unloader, SMT production line, PCBA conformal coating machine, LED production line, wave soldering machine, PCB cutting machine, PCB cleaning machine, SMT AOI/ SPI, laser making machine, etc. SMT equipment.
Welcome to Contact Us at Any Time for Further Information.
Email: etasmt@foxmail.com
Mobile : +8613670124230 (WhatsApp / Skype / WeChat)
Introduce of SMT Conveyor
This unit is used as an inspection station for operators between SMT machine
1.Modular design, optional assembly as per client’s requirement.
2.Rugged steel design, improves equipment stability .
3.Smooth stainless steel screw to adjust the width of the rail.
4.Variable speed control.
5.Circuit board testing mode.
6.Using a dedicated aluminum slot for transfer orbit to prevent PCB stuck.
7.Heavier bottom design, not easily shift.
8.Machine length can be customized.
9.Compatible with SMEMA interface.
*: Option: Dual rail
Specifications of High-end SMT Conveyor
Body Material | European standard aluminum alloy | China | ||||
Sensor | Omron | Japan | ||||
Rail | Aluminum (mold making) | China | ||||
Belt | 12mm antistatic belt | China | ||||
Guide Screw | High precision ball screw | Taiwan | ||||
Model | HC-500 | HC-600 | HC-1000 | HC-1200 | HC-1500 | HC-2000 |
Rail Length | 500 mm | 600 mm | 1000 mm | 1200 mm | 1500 mm | 2000 mm |
Dimension(mm) | 500*700*950 | 600*700*950 | 1000*700*950 | 1200*700*950 | 1500*700*950 | 2000*700*950 |
PCB Width | 50 to 350 mm | |||||
Power Supply | 1 PH AC 220V 50/60Hz (Option:110V to 380V) | |||||
Weight | 80 Kg | 80 Kg | 85 Kg | 115 Kg | 155 Kg | 180 Kg |
I.C.T Global Service
Customers' Feedback
FAQ
A: Leading SMT Supplier in China; Trade assurance to USD 560,000+; Professional after-sales service team
