L Series Reflow Ovens

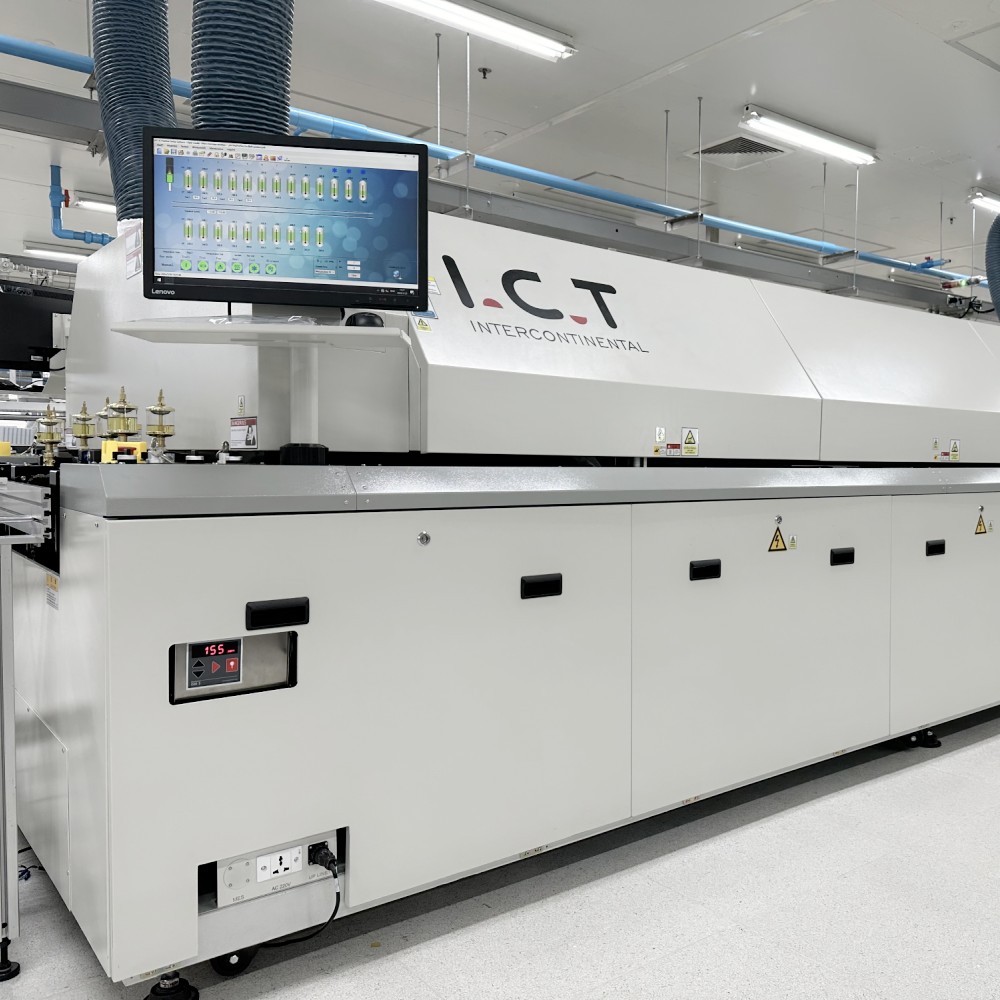

L series lead-free reflow oven I.C.T’s mature product after years of market testing.L Series Reflow oven has maintained a larger share of the market for many years. Its unparalleled heating performance and temperature control system meets the requirements of various welding processes, It is I.C.T’s crystallization of years technical research and development.

L Series Lead-free reflow is high-end reflow products committed to keeping up with market demand to enhance customers competitiveness.Its new design concept fully meets the needs of increasingly diverse processes, And considering the future direction of the industry, entirely suitable for communications, automotive electronics, home appliances, computers and other consumer electronic products .

Feature

1.Control System: PC + Siemens PLC control system,accurate temperature control and more stable,ensures temperature stability rate to be more than 99.99%.

2.Hot air system: first-class heating module, the best temperature zone interval design makes optimum temperature uniformity and repeat.The effective utilization and thermal compensation efficiency,it needs less than 20 minutes from temperature control accuracy ± 1 ℃ambient temperature to a temperature stabilization .

3.Monitoring Software:Windows interface, traditional and simplified Chinese and English online free switch, and operator password management, easy to operate.Operation records, temperature curve measurement and analysis functions, virtual simulation, fault self-diagnosis, process monitoring, automatic generate and save process control documents, substrate transport dynamic display.

4.Cooling System: new cooling zone, quick and easy adjustment, easily reach the cooling requirements of different slopes.

5.Temperature protection:I.C.T using third-party over-temperature protection, multiple layers protection to ensure safe operation.

Transportation system of L Series Reflow Ovens:

Transport System of reflow oven

1. The transportation method of mesh belt + chain is compatible with most PCBs and can meet more needs;

2. The overall segmented guide rail and multi-cantilever structure ensure the parallelism and stability of the guide rail;

3. High-temperature resistant lubricating oil, standard computer-controlled filling cycle, no manual maintenance required;

4. Independent frequency converter, imported Panasonic motor, computer closed-loop control of transmission speed, deviation within ±2%;

reflow oven Option dual rails

5. Option:dual rails with independent control of each rail’s speed;

6. The special spring-type chain tensioning device automatically adjusts the chain tightness to ensure that the chain will not get stuck;

7. Independent guide rail width adjustment, optional central support.

Heating System of L Series Reflow Ovens:

Heating System of reflow oven

1. Imported high-temperature-resistant long-axis motor, with independent inverter control of upper and lower temperature zones, supporting stepless speed regulation from 0 to 3000 speeds;

2. Specially made long-life winding heater with high thermal efficiency and sensitivity and small thermal inertia;

3. Efficiently accelerates the air duct to provide sufficient circulating air volume;

4. The rectifier board is made of high-quality imported aluminum-zinc plate, which has thermal compensation and thermal recovery of PCB, high thermal efficiency and better uniformity;

PID+SSR temperature control method

5. PID+SSR temperature control method, the temperature control accuracy reaches ±1℃

6. Each zone is independently controlled, and the PID+SSR temperature control method can better meet different temperature curves.

More information about Cleaning System, Nitrogen protection system, Cooling System and Control System, please contact us >>

Model	L8	L10
Dimension (LWH)mm	5000x1300x1530	5800x1300x1530
Weight	Approx. 2100KG	Approx. 2315KG
Number Of Heating Zones	Up8/Bottom8	Up10/Bottom10
Length Of Heating Zones	3110mm	3892mm
Rail Width Adjustment	Manual adjustment (Option: Automatic)
Exhaust Volume	10M3/min*2 Exhausts
Control System	PLC+Computer
Temperature Control Method	PID + SSR
Transmission Agent	Chain + Mesh
Electric Supply Required	5 Wire System 3P, N, PE 380 VAC ± 5%, 50 Hz. Other voltages upon request
Power For Warm Up	64KW	80KW
Power Consumption	10KW	12KW
Warming Time	Approx.25 minute
Temp. Setting Range	Room Temp.-- 300°C
Conveyor Height	900+/-20mm
Conveyor Speed Range	300~2000mm/mi
Fixed Rail Side	Front Fixed (Option:Rear Fixed)
Cooling Method	Forced-Air Motor and fan (Standard)

* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.

FAQ:

Q: What is reflow oven machine?

A: In SMT (Surface Mount Technology), a reflow oven machine is an essential component used for soldering electronic components onto printed circuit boards (PCBs). It precisely heats the solder paste, allowing it to melt and create secure connections, a fundamental step in the electronics assembly process.

Q: How does a reflow machine work?

A: A reflow machine works by gradually raising the temperature to melt the solder paste on PCBs. This controlled heating process creates reliable solder connections between components and the PCB, ensuring the functionality and durability of electronic assemblies.

Q: What are the steps in the reflow process?

A: The reflow process in SMT involves several key steps, including preheating, solder paste reflow, and cooling. Preheating prepares the assembly for soldering, solder paste reflow creates connections, and cooling solidifies the solder joints, resulting in a completed electronic assembly.

Q: What is the difference between reflow oven and wave soldering machine?

A: Reflow ovens and wave soldering machines serve different soldering needs in SMT. Reflow ovens are used for surface mount components, heating solder paste to create precise connections. Wave soldering machines, on the other hand, are used for through-hole components, using a wave of molten solder to solder the bottom side of PCBs. Each method addresses distinct assembly requirements in electronics manufacturing.
