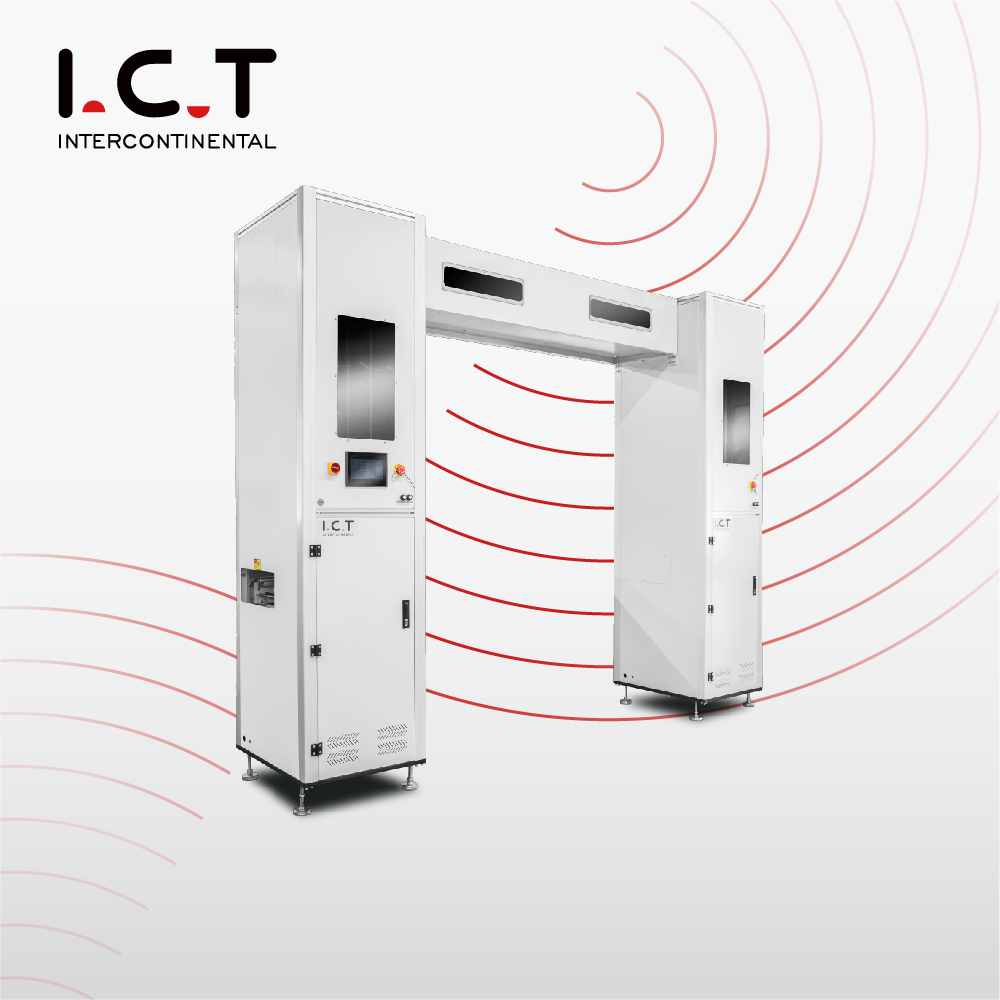

I.C.T | SMT Shuttle Machine

Name: I.C.T | SMT Shuttle Machine
Brand: I.C.T
Rating: 5.0 (29 reviews)

SMT Shuttle Machine
Buy it with your trusted partner! I.C.T brings 26 years of experience in the SMT industry.
Highlights: On-site installation and training Available, 24/7 Customer Service. Highly Trained Experts.Accurate and economical. Vision guided DIY kit. Easy To Assemble. Open Source Software.

Brand:
I.C.T

Availability:

Quantity:



Inquire Add to Basket

I.C.T | SMT Shuttle Machine

Introduction

High quality SMT magazine type buffer, multi function vertical buffer, PCB SMT NG/ OK buffer, multi function cooling vertical buffer, SMT PCB flipper, PCB inverter stations, for SMT SMD production line.

1.This uit is used to redirect PCBs flow into different channels in a production line.

2.Full closed design ensures operational security levels.

3.Top cover can be opened for easy access to hardware during maintenance.

4.Steady and precise scaling (retractable motor).

5.Parallel and smooth width adjustment(screw).

6.Touch screen and PLC control.

7.Minimize transmission clearance between conveyor.

8.Different lengths available upon request.

9.Compatible SMEMA interface.

Translation Shuttle Conveyor

Modular design, optional assembly as per client's requipment.

Rugged steel design, improves equipment stability.

Top & Bottom pneumatic clamps to secure magazine rack.

Soft touch LED control panel or touch screen can be selected.

Model	SC-M	SC-L
Dimension(mm)	500W1050(W Depends on Traversing Distance)	500W1050(W Depends on Traversing Distance)
PCB Size(mm)	5050-330250	5050-460330
Control System	PLC
Communication	SMEMA for Both In & Out
Power Supply	1 PH AC 220V 50/60Hz (Option:110V to 380V)
Weight	160KG	220KG
