LED PCB Insertion Conveyor for Reflow Oven in SMT Line

I.C.T | 500mm SMT Conveyor Transmission PCB Lift Conveyor is usually used to transfer and cooling PCBA after reflow soldering with rugged steel design, improves equipment stability.

  • SC-500

  • I.C.T

  • LED PCB conveyor line

Availability:
Quantity:
Inquire Add to Basket

LED PCB Insertion Conveyor for Reflow Oven in SMT Line


Introduction

High quality adjustable speed SMT conveyor, PCB turn conveyor, translation shuttle conveyor, high-end SMT upscale inspection conveyor, high-end dual-lane SMT upscale inspection conveyor, PCB standard reject conveyor, SMT sealing conveyor, PCB barcode scanning conveyor, for SMT SMD Production Line


PCB Lift Conveyor

1. This equipment is usually used to transfer and cooling PCBA after reflow soldering.

2.Rugged steel design, improves equipment stability.

3.Smooth stainless steel screw to adjust the width of the rail.

4.Variable speed control.

5.Circuit board testing mode.

6.Using a dedicated aluminum slot for transfer orbit to prevent PCB stuck.

7.Heavier bottom design, not easily shift.

8.Machine length can be customized.

9.Compatible with SMEMA interface.

*: Option: Dual rail


SMT Conveyor

Modular design, optional assembly as per client's requipment.

Rugged steel design, improves equipment stability.

Top & Bottom pneumatic clamps to secure magazine rack.

Soft touch LED control panel or touch screen can be selected.

Body Material

European standard aluminum alloy

 China
Sensor
 Omron
 Japan
Rail
 Aluminum (mold making)
 China
Belt
 12mm antistatic belt
 China
Guide Screw
 High precision ball screw
 Taiwan
Model
 HC-500
 HC-600
 HC-1000
 HC-1200
 HC-1500
 HC-2000
Rail Length
 500 mm 600 mm 1000 mm 1200 mm 1500 mm 2000 mm
Dimension(mm)
 500*700*950
 600*700*950
 1000*700*950
 1200*700*950
 1500*700*950
 2000*700*950
PCB Width
 50 to 350 mm
Power Supply
 1 PH AC 220V 50/60Hz (Option:110V to 380V)
Weight 80 Kg
 80 Kg
 85 Kg
 115 Kg
 155 Kg 180 Kg



FAQ


Q: What kind of control does your I.C.T PCB Conveyor use?

A:  We have both normal Conveyor which is controlled by microcontroller and high end Conveyor which is controlled by PLC and can be operated by touch screen if you have special customization.


Q: Can I put a Conveyor behind the reflow oven in our SMT line?

A: Yes you can, normally we would place a cooling docking station, either for you to pick up directly by hand or to access the AOI, it's a great option!




    I.C.T - Our Company

    SMT Machine PCB Conveyors

    About I.C.T:

    I.C.T is a leading provider of factory planning solution. We have 3 wholly-owned factories, providing professional consultation and services for global customers. We have more than 22 years of eletronic overall solutions. We not only provide a complete set of equipment, but also provide full range of technical support and services, and give customers more reasonable professional advice. We help many customersv to set up factories in LED, TV, mobile phone, DVB, EMS and other indutries all over the world. We are to set up factories in LED, TV, mobile phone, DVB, EMS and other indutries all over the world. We are trustworthy.

    SMT Machine PCB Conveyors


    Exhibition

    SMT Machine PCB Conveyors

    For SMT Factory Setup, We Can Do for You:

    1.  We Provide Full SMT Solution for You

    2.  We Provide Core Technology With Our Equipments

    3.  We Provide The Most Professional Tech Service

    4.  We Have Wealthy Experience on SMT Factory Setup

    5.  We Can Solve Any Question About SMT


    SMT Machine PCB Conveyors


    SMT Machine PCB Conveyors

    Previous:
    Next:
    led PCB conveyor line PCB insertion conveyor Reflow Oven Smt Conveyor

    Related Products

    I.C.T TC-A | SMT Telescopic Conveyor
    I.C.T TC-A | SMT Telescopic Conveyor
    I.C.T SCC-600 | SMT PCB Cooling Conveyor Behind Reflow Oven
    I.C.T SCC-600 | SMT PCB Cooling Conveyor Behind Reflow Oven
    Adjustable Speed Inspection SMT PCB Conveyor with Light
    Adjustable Speed Inspection SMT PCB Conveyor with Light

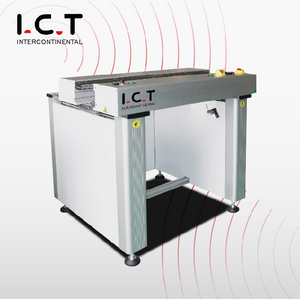

    High Quality Automatic SMT PCB Link Conveyor
