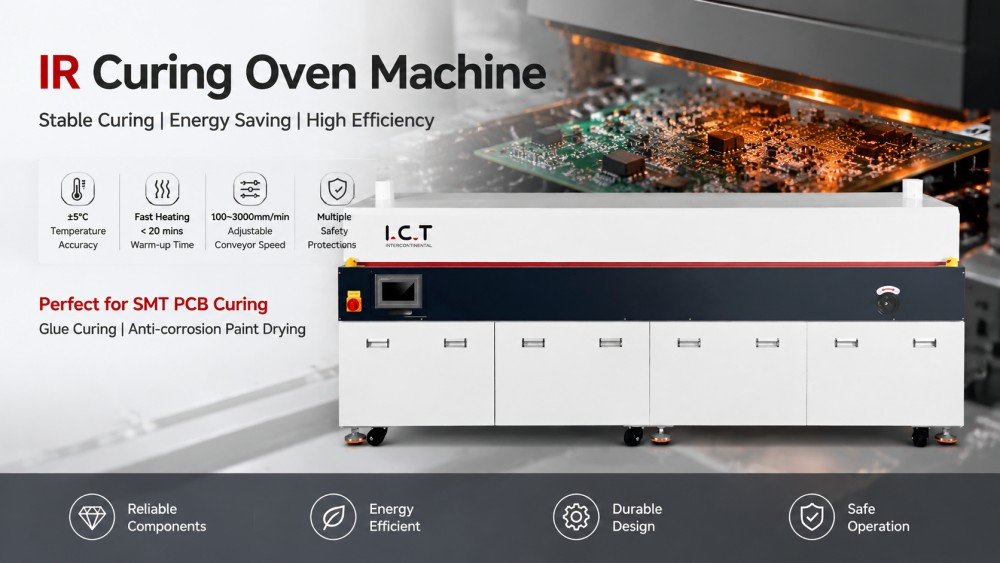

I.C.T-IR3
I.C.T
| Quantity: | |
|---|---|
Control system: PLC+touch screen or PC control optional, make sure machine working steadily;
IR heating: top zones IR heating, good heater compensatory, high thermal efficiency, energy saving, speedy heating, temperature accuracy ±5℃, room temperature settling time less than 20 minutes;
PID intelligent precision controller, automatically control heating volume, fuzzy control function changes the external heating fast, and by internal control ensures more balanced temperature;
Use imported big current solid relay, without touch point output, safe, reliable, with special SSR radiator, greatly improve thermal efficiency and lifetime;
I.C.T using third-party over-temperature protection, multiple layers protection to ensure safe operation;
Products comply with CE, CCC, UL and other standard or specifications;
Independent cooling area ensures the low temperature when PCB comes out;
Transmission system use imported motors, speed adjuster, smoothly running, adjustable speed at 100~3000mm/min;
I.C.T design makes temperature from each zone is not influenced by neighbour to ensure accurate temperature curve, to achieve high adaptability;
Using zero gas source design, furnace cover with motor lifting, safety rod support, providing significant security;

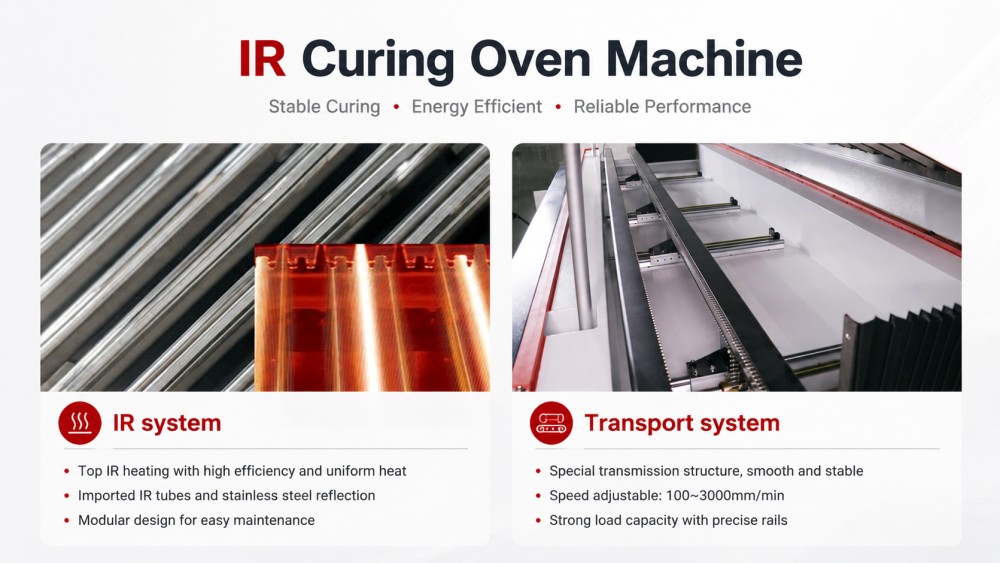

IR system
| Specifications | I.C.T-IR3 | I.C.T-IR4 |
| Transport | Rail | Rail |
| Control System | Touch screen+PLC | Touch screen+PLC |
| Heating Mode | IR(Hot air Optional) | IR(Hot air Optional) |
| Number Of Heating Zones | Up3 / Bottom0 | Up4 / Bottom0 |
| Length Of Heating Zones | 2500mm | 3500mm |
| Electric Supply | 3phase,380V 50/60Hz | |
| Dimension (L*W*H) | 3000*1150*1200mm | 4000*1150*1200mm |
| Weight | Approx.650KG | Approx.850KG |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
