I.C.T-U1
I.C.T
| Quantity: | |
|---|---|
I.C.T UV oven is cost-effective drying Oven produced by I.C.T, mainly to deal with the application of Adhesive(glue,uv photosensitive, inks,Epoxy resin adhesive etc). then followed by injection-type or print multiple materials in an instant surface cured and dried.

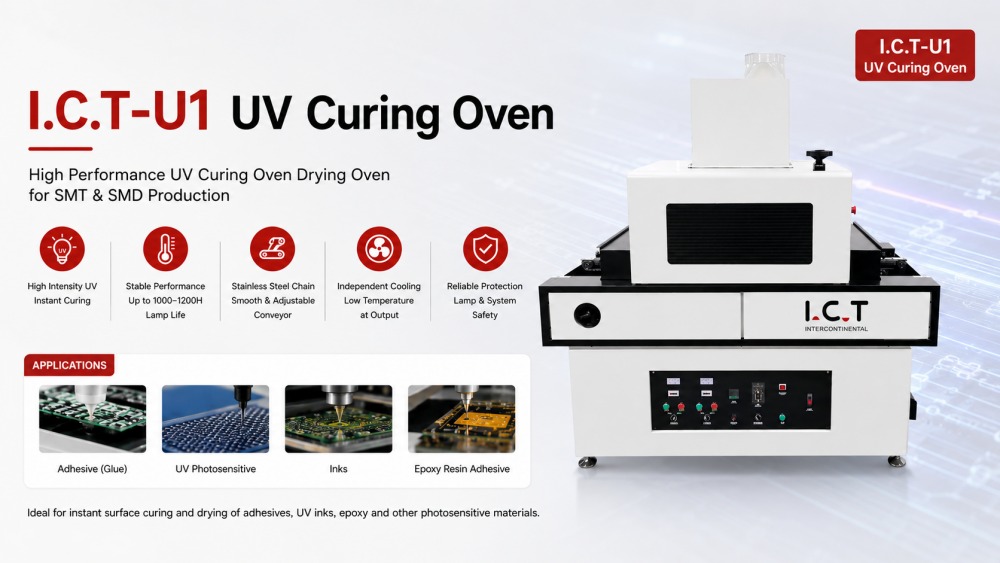

I.C.T-U1 UV Curing Oven
I.C.T-U2 UV Curing Oven
1. Control system: Instrument or PLC+touch screen control, make sure the machine working steadily;

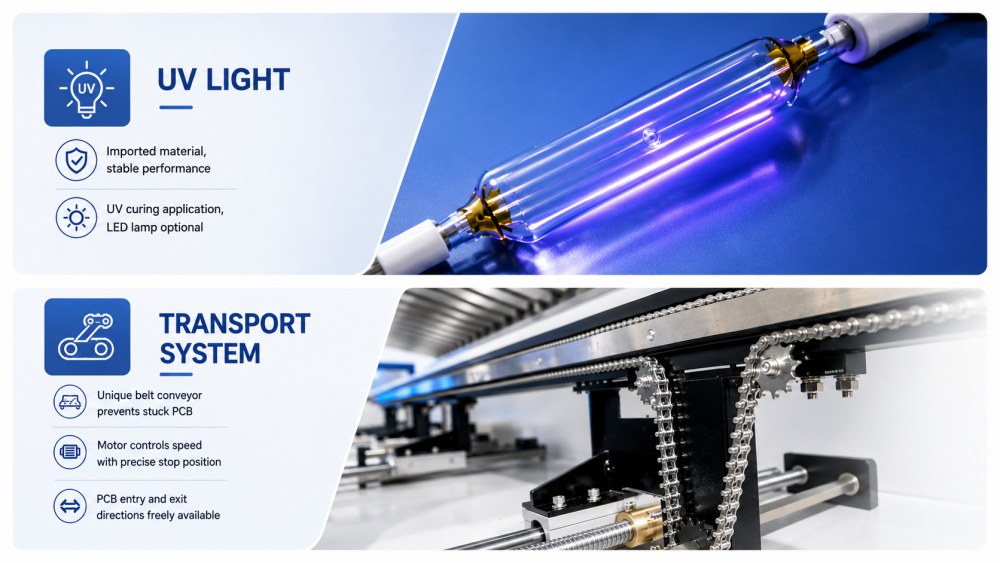

2. UV lamp lifetime can reach 1000-1200 hours, the energy of UV is higher and the penetration ability of the coating is stronger than abnormal lamp protection device;
3. Conveyor belt made of Teflon materials has no pole speed regulation, and speed is stable and adjustable;
4. Focus design, import high light reflector lamp shade, instant drying, fast speed;
5. Independent cooling area ensures a low temperature when PCB comes out;
6. Transmission system uses imported motors, speed adjuster, smoothly running;
7. Stainless steel chain transportation, the width can be adjusted;
8. The equipment has the function of in and out board detection, which can observe the number and transportation of the boards in the equipment;
9. It is equipped with transformer, reflector, lamp tube, trigger, UV reflective device, and reflector at the bottom, which greatly improves the utilization rate of UV light. Each group of UV lamps can be controlled separately, and the height can be adjusted up
| Specifications | I.C.T-U1 |
| Transport | Stainless steel chain |
| Control System | Instrument |
| Conveyor Speed | 500～5000mm/min |
| UV light quantity | 2set |
| UV light power | 5Kw/set |
| UV light source | UVA band |
| Main wave length | 365nm |
| UV light height adjustment | Adjustable |
| Max PCBA height | ±100mm |
| Max width of PCBA | 500mm |
| Electric supply | 3Phase, 380V 50/60Hz |
| Dimension (L*W*H) | 1800*970*1835mm |
| Weight | Approx.350KG |
* The data is obtained under the ambient temperature of 25℃ and humidity of 60%
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
