I.C.T-Q588A
I.C.T

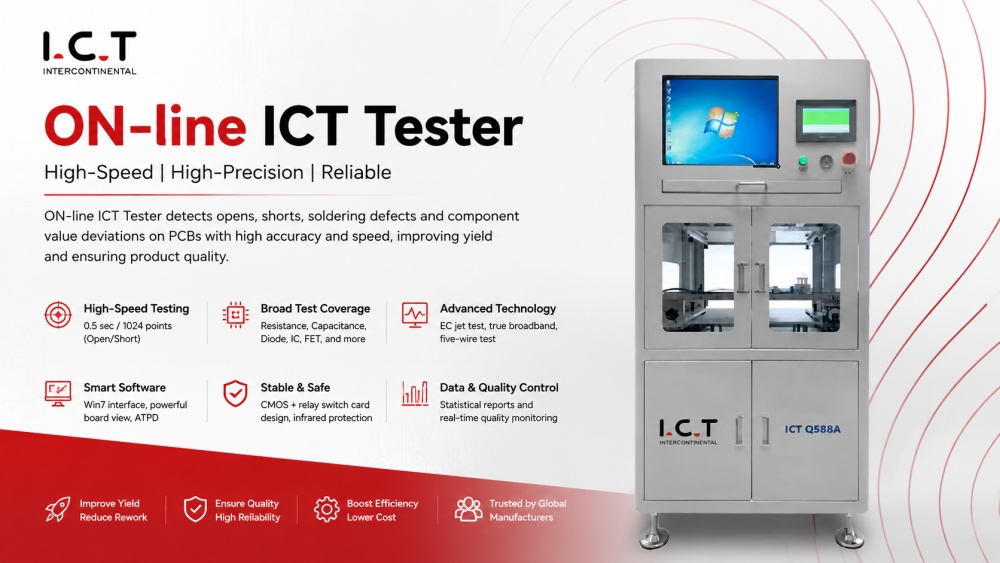

On-line ICT Tester
| Quantity: | |
|---|---|
Equipped with EC jet test technology
Design of CMOS + replay switch card
True broadband test technology
Humanized win7 interface, simple operation and easy to use
Powerful board view
Five wire test technology, up to four terminal components can be tested
ATPD automatic test program debugging
Improve statistical analysis reports and effectively monitor production quality
| Model | I.C.T-Q588A |
| PCB Size | 500mm x 350mm(STANDARD) |
| Test points | 256points Standard(1024points is optional) |
| Switch Card | 128/pot |
| Isolated points | 10 steps for each test, can automatically learn to isolate |
| The test speed | 0.5sec/1024 points(Open/Short) 2ms ~ 40ms/step(component test) |
| Test range | Resistance: 0.05 Ω~ 100M Ω ( 2-wire) ± 1% - 5% (four wire) ± 10m Ω. Capacitance 1pf ~ 40MF ± 2%-5%. Inductance 1uH ~ 50H, ± 2% - 5%. Diodes 0.1 ~ 9V ± 1%-3%. Zener diode: 0.1 ~ 15V ± 1%-3%. Transistor : Measurement of VCE saturation voltage at three terminals of transistor β value. FET : Three terminal test of field effect transistor VDS, CDs, RD (on). Optical coupler and circuit breaker : four terminals to test its conduction voltage or resistance. |
| Featured optional features | Micro-resistor (four-wire type)：Minimum 50mΩ (four-wire) ±10mΩ DRMode：Can measure diode or IC forward parallel leakage and empty welding Key Function：The program is suspended during the key test, and the quality of the key is checked with manual operation. Automatic stamp：Test PASS or Fail automatic stamping equipment Monitor placement：Monitor placement orientation (PASS or Fail shunt) Multi-press：Multiple or double press system Thru rate monitoring：When the through rate is <X%, it is an alarm bell, and when it is <Y%, the line is Graphics function：Board View & Automatic Production of Board Views Multi-board function：Panel auto-expansion & sub-panel selection & auto-detection |
| Power Supply | AC:220V,50/60HZ,3Kw |
| Dimension(mm) | 1000*750*1600 Can be customized as required |
| Weight | Approx:350kg |
